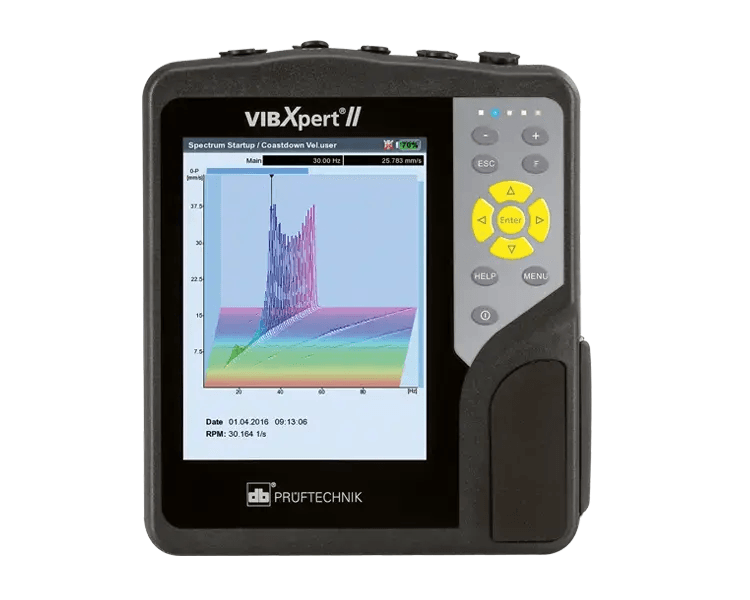

Input
Analog, Vibration, 2x:
Voltage (AC/DC, ±30 V max.)
Current (AC/DC, ±30 mA max.)
IEPE-type accelerometer (2 mA, 24 V max.)
Current Linedrive (CLD) accelerometer (10 V, 10 mA max.)
Frequency range: DC ... 51.2 kHz (Acceleration from 0.5 Hz)
Dynamic range: 96 dB (measurement) / 136 dB (total)
Sampling frequency: Up to 131 kHz per channel
Impedance: 90 kOhm, with cable VIB 5.433
Analog, Temperature, 1x:
Thermocouple (type K)
Digital, Pulse/ Tacho, 1x: RPM, Trigger, Keyphaser with pulse and AC signals: 0 V ... +26 V or -26 V ... 0 V
Max. input voltage:
± 26 V
Switching threshold for 0 V ...+26 V signal:
max. 2.5 V rising, min. 0.6 V falling
Switching threshold for -26 V ...0 V signal:
min. -8 V rising, max. -10 V falling
Pulse width: < 0.1 ms
Output
Stroboscope control:
TTL
Frequency range:
0 - 500 Hz
Resolution:
0.05 Hz
Signal-Out:
Connection for headphones to listen to the analog input signal; signal processing (oscilloscope)
Frequency range:
0.5 Hz - 40 kHz
Output impedance:
100 Ohm
Measurement range / Accuracy
Vibration acceleration:
Depends on the sensor connected
Shock pulse: -10 ...80 dBsv / ± 3dBsv
RPM:
10 ... 200 000 min-1 / ±0.1‰ or ± 1 min-1 (the lower accuracy is applicable)
Temperature, type K: -50 ... +1000°C / 1% or ±1°C (the lower accuracy is applicable)
Standards fulfilled:
Frequency response acc to ISO 2954
Power supply
Battery type:
Li Ion rechargeable battery pack (7.2V / 4.8Ah - 34 Wh)
Charging time: < 5 hours in the instrument
Charger, input:
110-240 V / 50-60 Hz
Computer
Processor:
Marvell PXA320 806 MHz
Memory:
Internal: 128 MB DDR RAM; Compact Flash:
2 GB to 8 GB (interchangeable)
Serial interface:
RS 232, <115 kBaud
USB interface:
USB 2.0
Ethernet interface:
100 Mbit (100Base T), 10 Mbit (10Base T)
