The U1000MKII-FM is an ultrasonic permanent/fixed clamp-on flow metering solution for measuring flow rate and total flow with a volume pulse output and optional Modbus or 4-20mA flow proportional output, which can be used as a stand alone meter or as part of an integral management system.

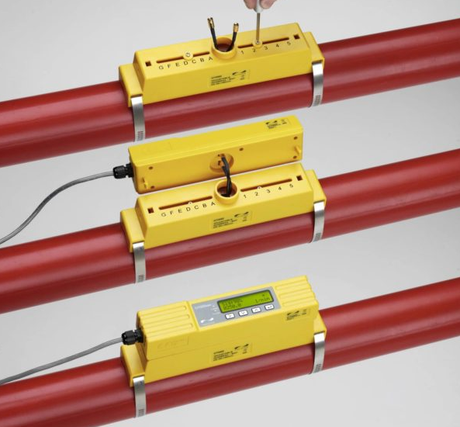

Simple to install – connect power enter the pipe inside diameter and material, adjust the sensors and clamp-on the pipe – no specialist skills or tools required! A cost effective alternative to traditional in-line meter installation, plus dry servicing, providing minimum downtime and maximum availability! Compact, rugged and reliable, the U1000MKII-FM has been designed to provide sustained performance in industrial environments.
Now available with the option of the original pipe-mounted or seperate wallmounted keypad and display plus extended pipe range and a heat/energy meter version.
Measurement Technique Ultrasonic, cross-correlation transit time method for flow measurement
Turn Down Ratio 100:1
Accuracy ±1% – 3% of flow reading for >0.3m/s (1 ft/s)
Flow Velocity Range 0.1m/s – 10m/s (0.3 ft/s – 32 ft/s)
Pipe range Available in 2 options
22mm to 115mm OD
125mm to 180mm OD
Note: Pipe size is dependent on pipe material and internal diameter
Pipe Material Steel, Stainless Steel, Plastic and Copper
Water Temp Range 0°C – 85°C (32°F – 185°F)
Pulse Output
Pulse or Frequency
Pulse for Volume flow and Alarms
Frequency for flow rate
The pulse output can be configured as a loss of signal or low flow alarm
Opto-isolated MOSFET volt free contact (NO/NC)
4-20mA Output Optional 4-20mA flow proportional output
Maximum load 620Ω
Modbus Communication Optional Modbus RTU slave
RS485 serial link hardware layer
Modbus connection cable is 1m
External Power Supply 12V – 24V ±10% AC/DC at 7 watts per unit
Optional plug in 12V power supply
Electronics Enclosure IP54
