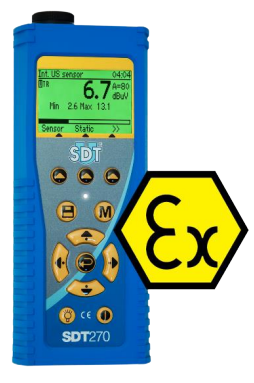

SDT270 Ultrasound Leak Detector and Data Collector
General | |
Input interface | 2 channels via 7 pole LEMO connector |
Display | Graphic LCD with backlighting (128 x 64 pixels) |
Measuring frequency range | Up to 100 kHz |
Signal amplification | From 0 to +90 dB by step of +10 dB |
Typical measuring range | -13 to +99.9 dB |
Raw sampling frequency | 256 ksps |
ADC Resolution | 16 bits |
System features | |
Data logger | SDT270 SS & SD with DataDump software: • 100 measurement nodes for a total capacity of 4 000 measurements SDT270 DD with DataDump software: • 100 measurement nodes for a total capacity of 4 000 measurements • dynamic measurements: 6 675 seconds with US sensor SDT270 SU used with Ultranalysis Suite 3: • more than 10 000 measurement nodes with static data SDT270 DU used with Ultranalysis Suite 3: • static measurements: more than 10 000 measurement nodes • dynamic measurements: 6 675 seconds with US sensor |
Max acquisition time per recording | 80 seconds at 8 ksps |
Ultrasound measurement | |
Typical measuring range | from -10 dBµV to 109 dBµV using gain function |
Sampling rate | 8 ksps |
Vibration measurement | |
Meeasuring range | Up to 20 g peak |
Temperature module (on-board) | |
Type | High precision non-contact infrared thermometer |
Measuring temperature range | -70 to +380 °C (-94 to +716 °F) |
Accuracy | ±0.5 °C |
Rotational speed module (on-board) | |
Type | Optical sensor |
Measuring range | ~10 to 99 999 RPM |
