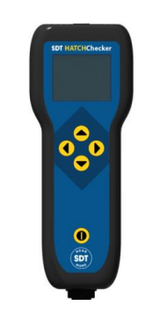

HATCHecker Hatch Cover Tightness Checker

The Sherlog HATCHecker is an ultrasound solution designed for testing hatch cover tightness. Use the Sherlog HATCHecker to find leaky areas on the hatch covers with pinpoint accuracy. The Sherlog HATChecker works with SDT’s ergonomic Flexible Sensor and the T-Sonic9 transmitter.
General
Measurement interface 1 channel via a 7 pole LEMO connector
Maximum cable length Up to 30m (98ft)
Typical measuring range -6 to 99.9 dBµV (reference 0 dB = 1 µV)
Display 160x128 pixels Color OLED
Measurement bandwidth 39.6 to 40.1 kHz
Signal amplification +30 to +102 dB by step of 6 dB
Sampling frequency 64 kHz
ADC Resolution 12 bits
