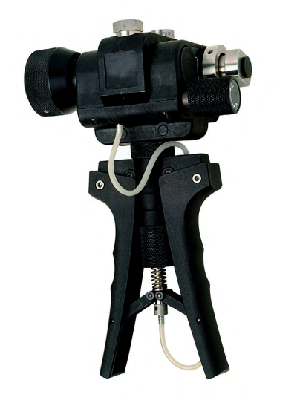

The PV411A is a high quality field proven pressure and vacuum hand pump providing functionality, which has never been seen before in a hand held pressure source. This remarkable product replaces four conventional hand pumps and offers the following additional features:
  • Generates pneumatic pressures to 1250 in H2O/45 psi
  • Generates vacuum to -27 in Hg
  • Unique vacuum priming function removes trapped air during hydraulic operation
  • High pressure generation is accomplished with the volume adjuster, eliminating the physical effort associated with conventional hand pumps
  • Pressure/vacuum selector valve also provides exceptional fine control pressure relief in both pneumatic and hydraulic modes
  • Tamper proof adjustable overpressure protection valve which can be set to relieve pressures from 300 to 10,000 psi
  • Removable hydraulic reservoir which can be disconnected from the pump without draining the fluid
  • Reservoir safety feature with spring loaded top cover vents if inadvertently pressurized above 8 psi
  • Hydraulic mode designed to operate with distilled water and/or high viscosity mineral oil
  • Highly sensitive volume adjuster is used for hydraulic, pneumatic, vacuum and low pressure operation
  • Built-in stroke adjuster controls the pressure/vacuum generated per stroke
  • 240° swivel head for optimum viewing of reference indicators
  • Internal moving parts are PTFE anodized for reduced friction and wear
  • Ergonomic, rugged and lightweight design with comfortable hand grip
Measurement range
  • Pneumatic pressure: 0 to 600 psi
  • Hydraulic pressure: 0 to 10,000 psi
  • Vacuum: 0 to 28.5 in Hg
Hydraulic media Designed for operation with distilled water (no alcohol), mineral oil equal to 40 wt.
Materials Stainless steel, anodized aluminum, Nitrile rubber, acrylic, PTFE, polyurethane, delrin and nylon
Pressure connections 1/4 in NPT female
Reservoir connection 1/4 BSP female
Reservoir volume
  • 100 cc
  • Optional large volume: 200 cc
