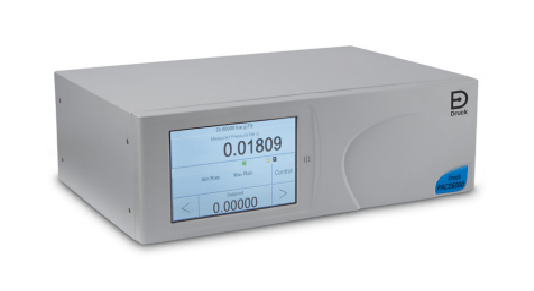

PACE 6000 Modular Pressure Controller
Pressure measurement | |
CM0/CM1/CM2 pressure ranges | 25, 70, 200, 350 and 700 mbar gauge 1, 2, 3.5, 7, 10, 20, 35, 70, 100, 135, 172, 210 bar gauge |
CM3 pressure ranges | 1,2.5,7,10,20,35 and 70, 100, 135, 172, 210 bar pseudo gauge 2,3.5,8,11,21,36,71,101, 136, 173, 211 bar absolute |
Pressure Media | Dry, oil free, and non-combustible gas maintained at a value of 10% above the maximum required outlet pressure, dry air or nitrogen recommended |
Display | |
PACE5000 | 4.3” TFT color VGA resolution wide format display with integral touchscreen |
PACE6000 | 7” TFT colour VGA resolution wide format display with integral touchscreen |
Comms update rate | 8 times per second |
Display update rate | 2 times per second |
Performance | |
PACE CM0 standard precision |
|
PACE CM1 high precision |
|
IPS2 high precision |
|
Power supply | 90 VAC to 130 VAC @ 47 to 63 Hz and 180 VAC to 260 VAC @ 47 to 63 Hz. 15 VA |
Communication | S232, USB and IEEE-488, SCPI, emulation (DPI520, DPI500, DPI510 & DPI515 depending on model) ethernet (VXI-II and Sockets using SCPI) |
