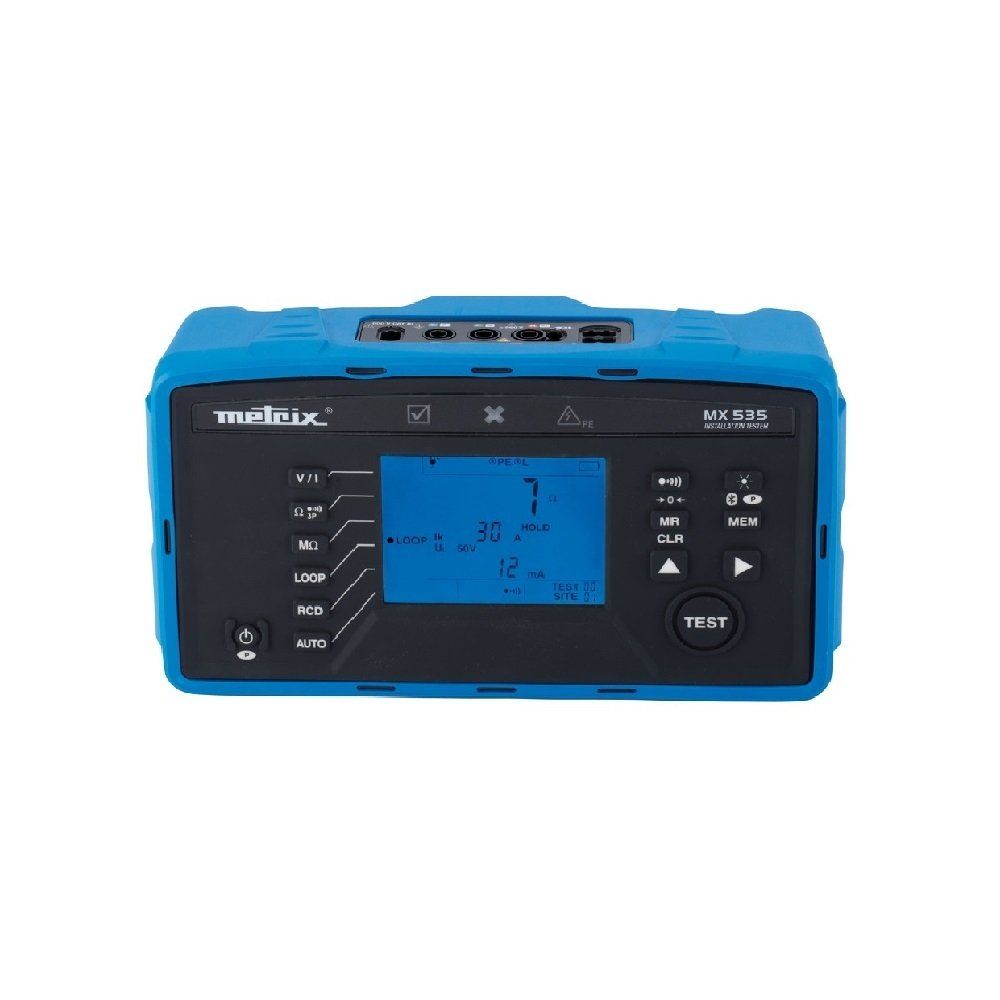

MX535 Multifunction Installation Tester

Complete and lightweight, the MX535 multifunction installation tester offers all the essential functions for checking the safety of electrical installations according to the applicable standards: NFC15-100, FDC16-600, EN61557, etc.

Particularly aimed at self-employed electricians, contractors, installers, certification organizations and maintenance teams, it offers a good price/performance trade-off. The MX535 can be used to run automatic test sequences and store the results. Earth measurement is performed by the stake method with loop measurement.

Specifications

  • Voltage measurement: 550 VAC / 800 VDC
  • Frequency measurement: 30 Hz to 999.9 Hz,
  • Continuity at 200 mA, - Resistance from 1 to 99.99 kΩ
  • Insulation: 250V, 500V and 1 kV test voltage, measurement up to 999 MΩ
  • 3P earth (stakes): up to 2,000 Ω
  • Zs (Z L-PE) loop without tripping: 1 to 2,000 Ω, calculation of Ik
  • Zs (Z L-PE) high-current loop with tripping, calculation of Ik
  • Type AC & A RCDs: 30mA, 100mA, 300 mA, 500 mA, 650 mA
  • RCD in pulse mode: tripping time
  • RCD in ramp mode (30 mA): tripping current
  • Automatic RCD test sequence: No trip -Pulse-Ramp
  • Automatic test sequence: Loop-RCD-MΩ
  • Phase rotation: 45 to 550V; 45 to 65 Hz
  • Data storage: 30 sites with 99 tests each using the MEM key or the optional remote-control probe
  • Current and leakage current (with clamp): 2 A / 200 A ranges
  • Electrical safety: IEC 61010, 300 V CAT III
  • ANDROID application for report generation
