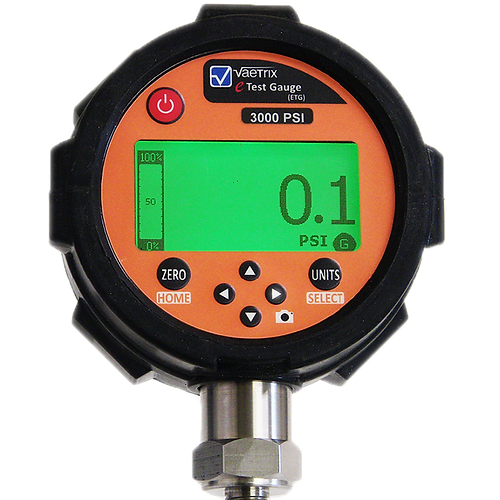

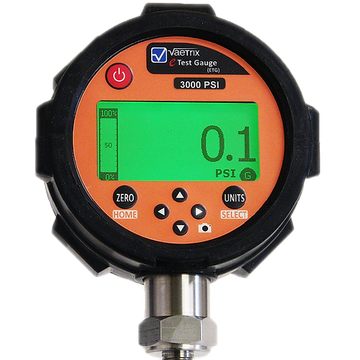

ETG Digital Process Gauge

ETG Digital Process Gauge

Choose your options to build your gauge. Add -BT Bluetooth to monitor pressure on your phone/tablet, track pressure trends, or run leak tests. If you need basic temperature measurement capability for tests to ASME B31.3 or gas distribution testing, select the -TP option as well. Even select EX for Intrinsically Safe approval on this lower accuracy gauge. Bluetooth is not available on EX products due to power consumption.


Create custom test reports with ease by adding the Hydro Data Management software with plot curves for both pressure and temperature. No other gauge gives you these options at this value.

Download Brochure

  • Pressure Range

    -5 to 5 PSI

    -12 to 30 PSI

    -12 to 100 PSI

    -12 to 300 PSI

    -12 to 500 PSI

    0 to 1000 PSI

    0 to 2000 PSI

    0 to 3000 PSI

    0 to 5000 PSI

    0 to 10000 PSI

    0 to 14500 PSI

    0 to 20000 PSI

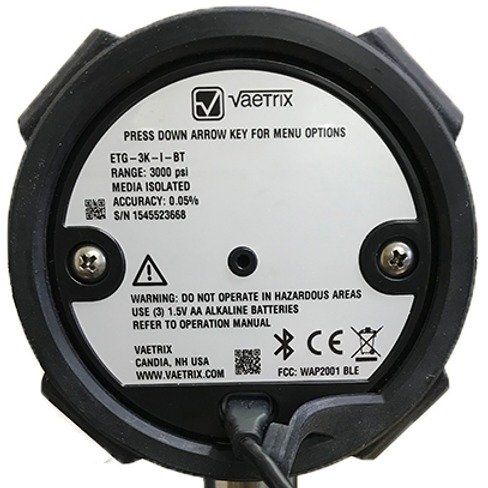

  • Bluetooth

    -Bluetooth

    -None

  • Accuracy

    -0.1% Full Scale

    -0.25% Full Scale

  • Temperature

    -Temperature

    -None

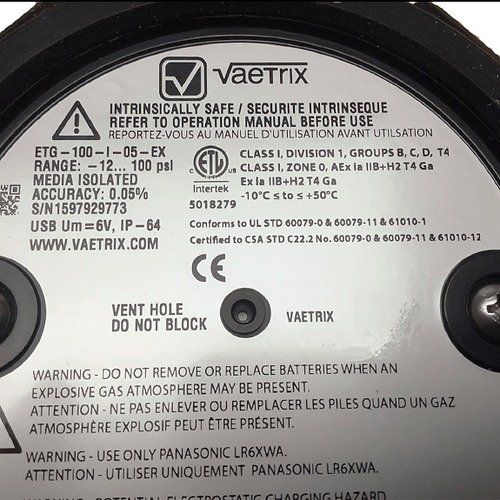

  • Intrinsically Safe (EX)

    -EX

    -None

  • Pressure Accuracy

    Accuracy: ±0.1% or ±0.25% full scale over -10°C to 50°C (14°F to 122°F)


    *20K and above come standard with HM4 fitting

  • Warranty

    Backed with a four year product warranty and unlimited customer support.  We fully support our products right here in the USA. If you have any application or technical questions give us a call.

  • Temperature Accuracy (OPTIONAL)

    ±1°F/1°C over operating temperature range
