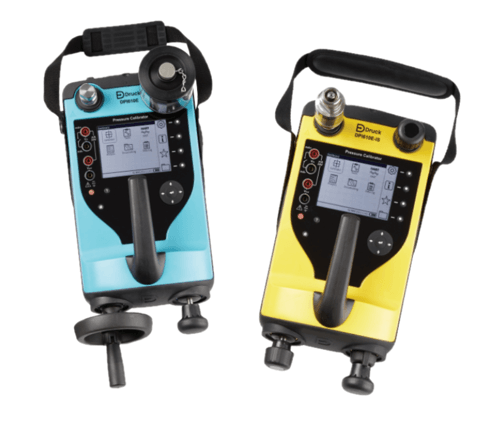

The DPI610E combines pressure generation, signal measurement and loop power with significantly improved pump capabilities and a powerful touch and button user interface. The unit has been designed for instrument technicians, using input from those working in the field. It is an ideal solution to your test and calibration application.
  • The complete pressure calibration tool comes in two versions:
    • Pneumatic version: Pneumatic pressure range from -0.95 to 35 bar/ 500 psi/3.5 Mpa with inbuilt barometer for accurate pseudo pressure measurements (gauge)
    • Hydraulic version: Hydraulic pressure range up to 1000 bar/15000 psi/ 100 Mpa (absolute)
  • HART as standard on all versions
  • Best in class pressure accuracy: Total 1 year uncertainty down to 0.025% full scale (FS) over temperature range of -10°C to +50°C
  • Integral calibration record with calibration due countdown
  • Robust, handheld design with backlit high-contrast display
  • Hazardous area (Intrinsically safe) version available
  • Optional remote plug and play pressure sensor (PM700E) and Resistance Temperature Detector (RTD-INTERFACE)
  • Minimise in-the-field leaks with quick-fit pressure adapters and hoses
  • Full data logging and local documenting capabilities included
Measurement range
  • Pneumatic pressure:
    • 350mbar, 1bar, 2bar, 3.5bar, 7bar, 10bar, 20bar, 35bar
  • Hydraulic pressure:
    • 70bar, 100bar, 135bar, 200bar, 350bar, 700bar, 1000bar
Display Size: 112mm (4.4in) diagonal. 320 x 240 pixels. LCD monochrome display
Internal memory 100,000 point data logging memory, store user procedures and test results
Ingress protection IP54
Shock/vibration BS EN 61010-1:2010/MIL-PRF-28800F CLASS 2
Altitude Up to 2000m
EMC BS EN 61326-1:2013
Electrical safety BS EN 61010-1:2010
Pressure safety Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Power supply Integral Lithium ion battery
Mains adaptor P/N IO610E-PSU 100 – 260V 50/60Hz AC, Output DC V=15V, 1.6A
Battery life
  • Much improved battery performance typically:
    • 100% Volts Measure, 0% Current Source 4mA, 0% Current Source 20mA -> 90 hours
    • 80% Volts Measure, 10% Current Source 4mA, 10% Current Source 20mA -> 74.8 hours
    • 40% Volts Measure, 40% Current Source 4mA, 20% Current Source 20mA -> 62 hours
    • 0% Volts Measure, 0% Current Source 4mA, 100% Current Source 20mA -> 31.5 hours
  • Full recharge in 2 hours with supplied charger
Connectivity USB client micro-USB
