VAETRIX

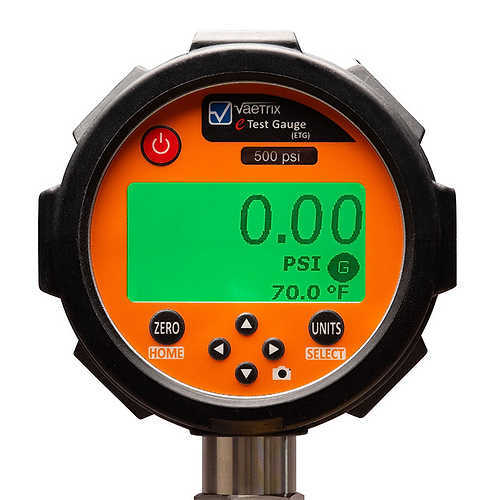

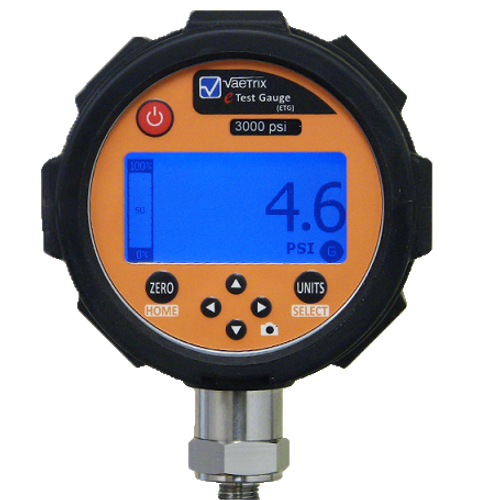

ETG Calibration Gauge

ETG Calibration Gauge

Choose your options and build the gauge for your application. Now with the ability to measure temperature. Add the Hydro Management Software to create full blown tests for ASME B31.3 and replace several analog gauges.


Vaetrix ETG utilizes the latest digital technology to accurately solve pressure measurement applications. All MEMS pressure sensors are fully temperature compensated throughout the operating range. The easy to use interface and intuitive menu structure is the best in the industry. There are no encrypted symbols or abbreviations, just press the arrow keys to navigate the menu and select your choice.

Download Brochure

  • Pressure Range

    -12 to 15 PSI

    -12 to 30 PSI

    -12 to 100 PSI

    -12 to 300 PSI

    -12 to 500 PSI

    0 to 1000 PSI

    0 to 3000 PSI

    0 to 5000 PSI

    0 to 10000 PSI

    -15 to 15 PSI

    -15 to 30 PSI

    0 to 2000 PSI

  • Bluetooth

    -Bluetooth

    -None

  • Temperature

    -Temperature

    -None

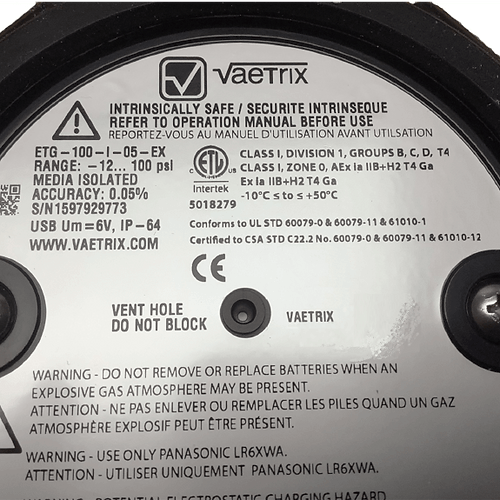

  • Intrinsically Safe (EX)

    -EX

    -None

  • Accuracy

    Pressure: ±0.05% Full Scale over  -10°C to 50°C (14°F to 122°F)

  • Warranty

    Backed with a four year warranty and unlimited customer support. We fully support our products right here in the USA. If you have any application or technical questions give us a call.

  • Temperature Accuracy Optional

    Temperature: ±1°F/°C over operating range
