C.A 8336 Power and Energy Quality Analyser

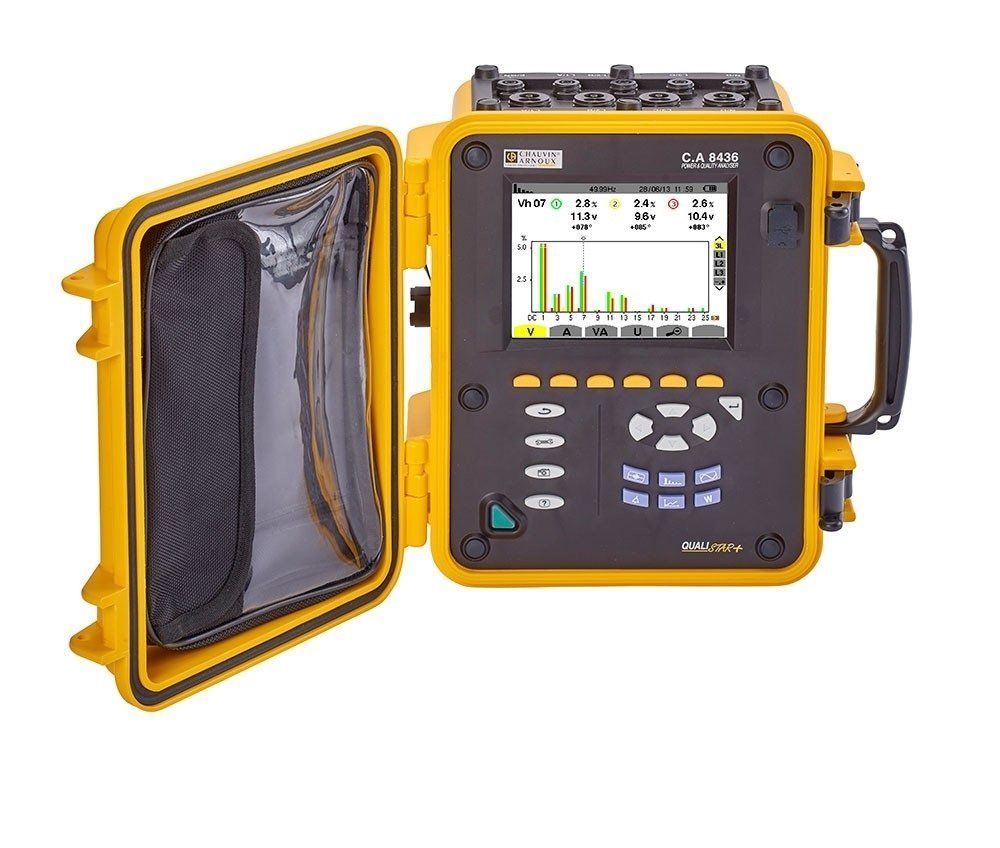

The C.A8436 Qualistar Plus power and energy quality analyser is ideal for quick network quality checks and effective analysis of the results. The rugged, waterproof IP67 C.A8436 is suitable for indoor and outdoor use, even when it is raining. The C.A8336 is equipped with 5 voltage measurement channels and 4 current measurement channels. The C.A8336 captures and records all the parameters, transients, alarms and waveforms simultaneously.

Specifications

  • TRMS AC+DC voltage range: Up to 1,000V
  • TRMS AC+DC current range: Up to 10kAAC / 5kADC
  • Frequency: 40Hz to 69Hz
  • Power values: W, VA, var, VAD, PF, DPF, cos φ, tan φ
  • Energy values: Wh, varh, VAh, VADh
  • Harmonics from 0 to the 50th order, phase
  • Flicker (Pst and Plt)
  • Inrush with waveform over a period > 10 minutes
  • Recording of a selection of parameters at the maximum sampling rate over a period of 2 weeks to several years
  • Peak detection
  • Vectorial representation
  • USB communication
  • Power supply: 9.6 V NiMH rechargeable battery or external mains charger
  • IP67
  • Electrical safety: IEC 61010 1,000V CATIII/ 600V CATIV
