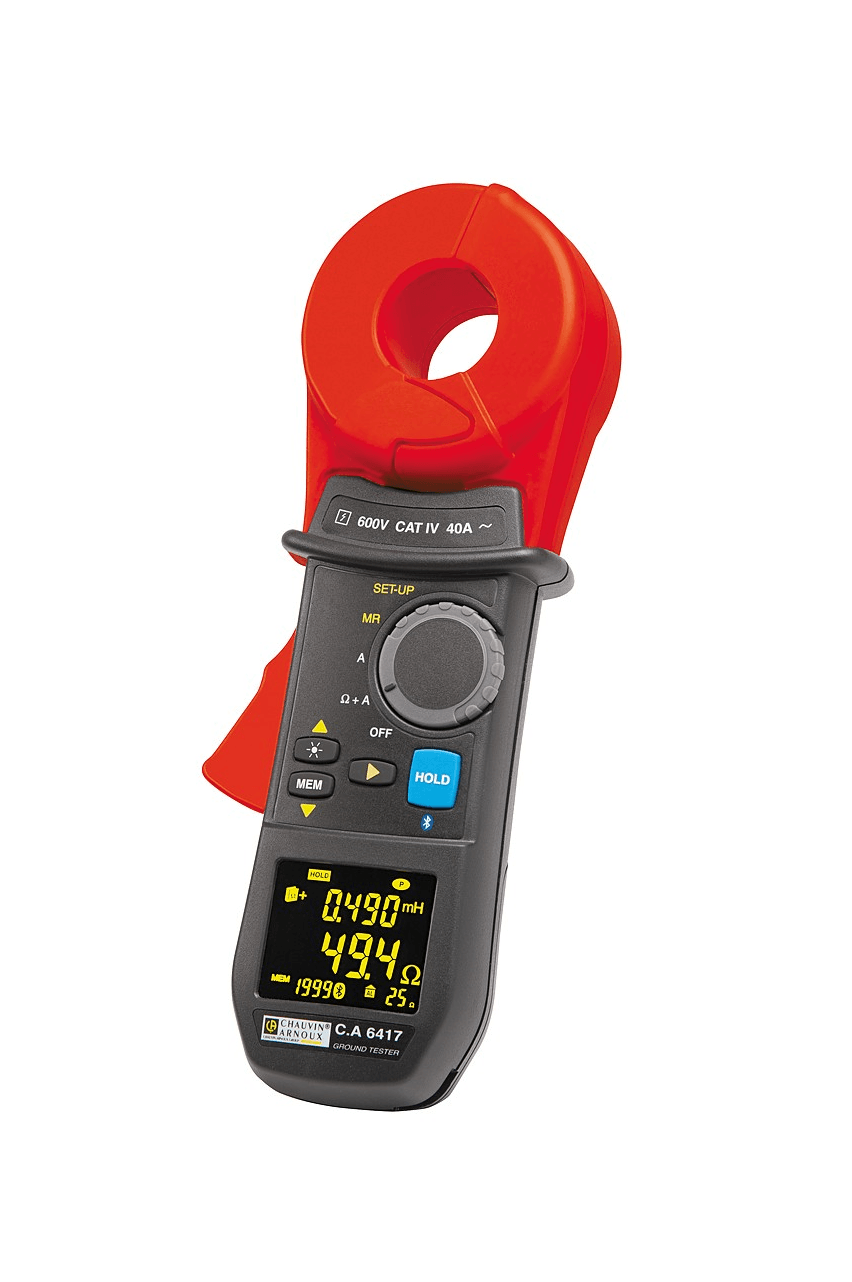

C.A 6417 Earth Clamp

The C.A 6417 earth clamps, delivered in a carrying case, are ideal for quick earth-loop resistance measurements. 600V CAT IV, they display the earth voltage with a dangerous voltage alarm and provide additional safety during measurement.

They are particularly easy to use thanks to ergonomic innovations such as a force compensation system to keep the clamp open without any effort and an OLED display, offering visibility over an angle of 180° whatever the lighting conditions.

The automatic PRE-HOLD function when the clamp is opened and the automatic jaw calibration function at power-up help to optimize processing of the measurements provided by the clamps.

Equipped with Bluetooth communication, the C.A 6417 clamp can be used with the GTC and/or DATAVIEW® PC software to view the values in real time, recover the measurements and create standard or customized measurement reports. There is also an ANDROID application for tablets & smartphones for viewing real-time graphs, GPS geolocation of the measurements and email distribution of the measurements with graphs, comments and photos.

Specifications

  • Large measurement range: 1,500 Ω / 500 µH / 40A
  • Alarms on Ω, A and V
  • Automatic Pre-Hold mode when the clamp is opened
  • 2,000 storage locations
  • Real-time clock for time/date-stamping of measurements
  • Automatic calibration of jaw opening distance at start-up
  • Buzzer and automatic power-off
  • Bluetooth communication interface
  • GTC data transfer software
