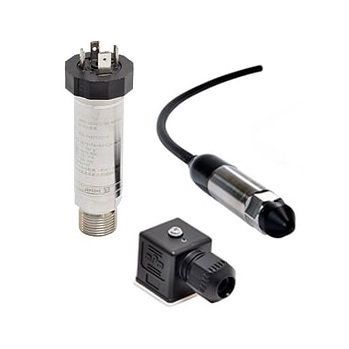

The new UNIK 5600/5700 carries marine certification for most zones on-board ship, as well as Intrinsically Safe certifications. Marine approval means UNIK 5000 complies with International standards, regulations and Marine Law. The use of Druck silicon technology and analogue circuitry enables best in class performance for stability, low power and high frequency response. The platform enables you to build up your own sensor to match your precise needs. This high performance, configurable solution to pressure measurement employs modular design and lean manufacturing techniques to offer:
  • Ranges from 70 mbar to 700 bar (1 psi to 10,000 psi) (Depending on material option)
  • Accuracy to ±0.04% Full Scale (FS) Best Straight Line (BSL)
  • Stainless Steel 316L and Titanium construction options
  • Frequency response to 3.5 kHz
  • High over pressure capability
  • Intrinsically Safe Hazardous Area certification
  • 4-20 mA output
  • Multiple pressure connector options
  • DIN 43650 or fully submersible electrical connection
  • Operating temperature ranges from –40 to 80°C (-40 to 176°F)
Measurement range
  • Gauge ranges
    Any zero based range between 70 mbar and 70 bar (1 to 1,000 psi)
  • Sealed gauge ranges
    Any zero based range between 10 and 700 bar (145 to 10,000 psi)
  • Absolute ranges
    Any zero based range between 100 mbar and 700 bar (1.5 to 10,000 psi)
  • Differential ranges (Stainless Steel option only)
    • Wet/Dry: Uni-directional or bi-directional 70 mbar to 35 bar (1 to 500 psi)
    • Wet/Wet:Uni-directional or bi-directional 350 mbar to 35 bar (5 to 500 psi)
    • Line pressure: 70 bar max (1,000 psi)
  • Barometric ranges
    Available with a minimum span of 350 mbar (5.1 psi)
  • Non-zero based ranges
Electrical connector
  • DIN 43650 Form A demountable (mating connector supplied)
  • Depth cable
  • Demountable kynar cable
  • TPE-U depth cable
  • Demountable TPE-U cable
Electronics option 4 to 20 mA 2-wire (PTX)
Compensated temperature range
  • -10 to +50 °C (14 to +122 °F)
  • -20 to +80 °C (-4 to +176 °F
  • -40 to +80 °C (-40 to +176 °F)
Accuracy
  • Improved: ±0.1% FS BSL
  • Premium: ±0.04% FS BSL
