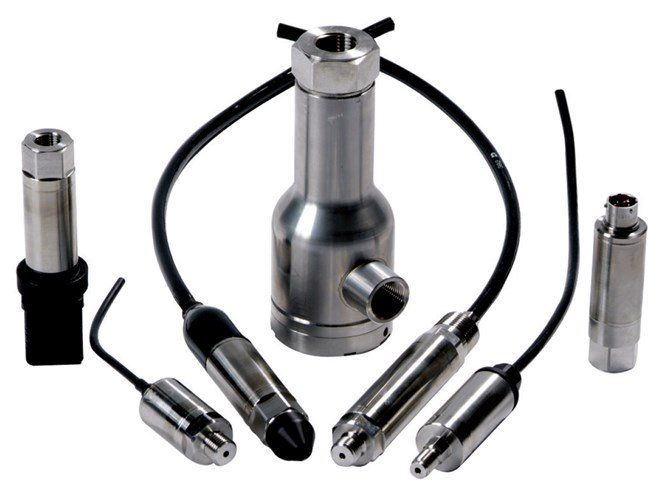

The new UNIK 5000 is a high performance configurable solution to pressure measurement. The use of micromachined silicon technology and analogue circuitry enables best in class performance for stability, low power and frequency response. The new platform enables you to easily build up your own sensor to match your own precise needs. This high performance, configurable solution to pressure measurement employs modular design and lean manufacturing techniques.
  • Ranges from 70 mbar to 700 bar (1 psi to 10000 psi)
  • Accuracy to ±0.04% Full Scale (FS)
  • Best Straight Line (BSL)
  • Stainless Steel construction
  • Frequency response to 3.5 kHz
  • High over pressure capability
  • Hazardous Area certifications
  • mV, mA, voltage and configurable voltage outputs
  • Multiple electrical and pressure connector options
  • Operating temperature ranges from –55 to +125°C (-67 to +257°F)
  • Online configuration tool available
Measurement range
  • Gauge ranges
    Any zero based range 70 mbar to 70 bar (1 to 1000 psi)
  • Sealed gauge ranges
    Any zero based range 10 to 700 bar (145 to 10000 psi)
  • Absolute ranges
    Any zero based range 100 mbar to 700 bar (1.5 to 10000 psi)
  • Differential ranges
    • Wet/Dry: Uni-directional or bi-directional 70 mbar to 35 bar (1 to 500 psi)
    • Wet/Wet:Uni-directional or bi-directional 350 mbar to 35 bar (5 to 500 psi)
    • Line pressure: 70 bar (1000 psi) maximum
  • Barometric ranges
    Available with a minimum span of 350 mbar (5.1 psi)
  • Non-zero based ranges
Electrical connector
  • Cable Gland (Polyurethane Cable)
  • Raychem Cable
  • Polyurethane Cable (Depth)
  • Hytrel Cable (Depth)
  • MIL-C-26482 (6-pin Shell Size 10) (Mating connector not supplied)
  • DIN 43650 Form A Demountable (Mating connector supplied)
  • Demountable MIL-C-26482 (6-pin Shell Size 10) (Mating connector not supplied)
  • 1/2” NPT Conduit (Polyurethane cable)
  • Micro DIN (9.4 mm Pitch) (Mating connector supplied)
  • MIL-C-26482 (6 pin Shell Size 10) Alternative Wiring (Mating connector not supplied)
  • Demountable MIL-C-26482 (6 pin Shell Size 10) Alternative Wiring (Mating connector not supplied)
  • M12 x 1 4-pin male (Mating connector not supplied)
  • Zero Halogen Cable Demountable
  • Kynar Cable (Depth)
  • M20 x 1.5 Inline Female Conduit Demountable
Electronics option
  • mV Passive 4-wire
  • mV Linearised 4-wire
  • 4 to 20 mA 2-wire
  • 0 to 5 V 4-wire
  • 0 to 5 V 3-wire
  • Basic Configurable 3-wire
  • 0 to 10 V 4-wire
  • 0.5 to 4.5 V Ratiometric 3-wire
  • Configurable 4-wire
  • Configurable 3-wire
Compensated temperature range
  • -10 to +50 °C (14 to +122 °F)
  • -20 to +80 °C (-4 to +176 °F)
  • -40 to +80 °C (-40 to +176 °F)
  • -40 to +125 °C (-40 to +257 °F)
Accuracy
  • Industrial: ±0.2% FS BSL
  • Improved: ±0.1% FS BSL
  • Premium: ±0.04% FS BSL
