SHAFTALIGN Touch
The new ShaftAlign Touch is a rugged laser alignment system that provides digital, cloud, and other advancements over the decades-old but still widely used dial indicator and feeler gauge.
ShaftAlign Touch is a combination of software and hardware innovations enabling maintenance teams to address a wide variety of alignment challenges that basic laser alignment systems cannot handle.
It also delivers premium Adaptive Alignment capabilities that, until now, were not available in an entry-level system.
Two innovations – single-laser technology and Active Situational Intelligence – differentiate ShaftAlign Touch from the competition.
Together, they deliver the “magic” that enables Prüftechnik alignment products to automatically adapt – in real time, as alignment jobs are finished – to the asset, the situation, and the user's experience level.
Step up to the high precision and intelligence built into the ShaftAlign Touch: eliminate the time, rework, and guessing common to other approaches. Get more done while enabling your machines to operate at peak performance.

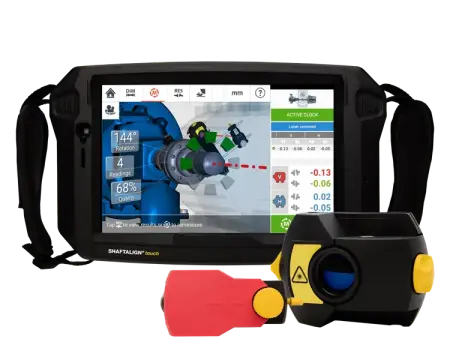

SHAFTALIGN® Touch rugged device
CPU:
Processor: Exynos 7 Octa, 1.6GHz Octa-Core (Cortex®-A53)
Memory: 3 GB RAM, 16 GB Flash memory
Display:
Technology: TFT
Integrated light sensor for automated adjustment
of the brightness to the display according to the
lighting conditions hence extending battery life
Resolution: 1280 x 800 Pixel
Size: 203.1 mm (8”)
Connectivity:
Wi-Fi: 802.11 a/b/g/n/ac (2.4 GHz +5 GHz)
Wireless: 4.2
RFID: NFC
Camera:
Main Camera - Resolution: 8.0 MP, Auto Focus
Front Camera - Resolution: 5.0 MP
Battery:
Type: Li-Ion rechargeable battery 3.8 V / 4450 mAh / 16.91 Wh
Operating time: Up to 11 hours
sensALIGN® 5 sensor
Measurement principle: Coaxial, reflected laser beam
LED indicators:
1 LED for laser beam status and battery status
1 LED for Wireless communication
Power supply:
Battery: Lithium-Ion rechargeable battery 3.7 V / 5 Wh
Operating time: 10 hours (continuous use)
Charging time:
Using charger – 2.5 h for up to 90%; 3.5 h for up to 100%;
Using USB port – 3 h for up to 90%; 4 h for up to 100%
Detector:
Measurement range: Unlimited, dynamically extendible
Resolution: 1 μm (0.04 mil) and angular 10 μRad
Accuracy (avg): > 98%
Inclinometer:
Measurement range: 0° to 360°
Resolution: 0.1°
Inclinometer error (Ta = 22°C): 0.3% full scale
Laser Type: Semiconductor laser diode
Wavelength: 630 - 680 nm (red, visible)
Safety class:
Class 2 according to IEC 60825-1:201, The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.
Beam power: < 1 mW
Beam divergence: < 0.3 mrad
External interface: Wireless communication
Transmission distance: Up to 30 m (98 ft) direct line of sight
Reflector (prism)
Type: 90° roof prism
Accuracy (avg): >99%
