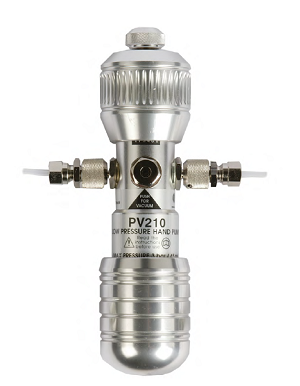

The PV210 is a lightweight, yet rugged and durable, low pressure and vacuum hand pump offering exceptional fine control. Thermally insulated to eliminate hand held temperature effects and supplied with a built-in pressure relief valve to protect the test instrument, this pump was truly designed with the requirements of low pressure calibrations in mind.

• Generates pneumatic pressures to 1250 in H2O/45 psi
• Generates vacuum to -27 in Hg
• Dual source of pneumatic pressure and vacuum
• Finger-tight quick fit connectors
• Creates 95% vacuum
• Extremely low pressures generated by using the fine adjust vernier alone
• Built-in pressure relief valve for setting maximum output pressure
• Fine control needle valve for pressure release
• Thermally insulated to eliminate temperature effects

Measurement range	Pneumatic pressures to 1250 in H2O/45 psi Vacuum to -27 in Hg
Relief valve adjustment	20 in H2O to maximum pressure
