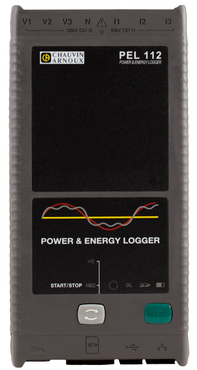

The PEL 112 measures and records all the power and energy values. It can be used wherever there is electricity:
• electricity generator: renewable energies, thermal energy, etc.
• industries: metallurgy, glassmaking, agri-food
• residential buildings, tertiary, etc.
• infrastructure and transport
• datacenters, etc.
  • Applications
    • Energy audits
    • Electrical diagnostics
    • Industrial maintenance
  • Simple, effective ergonomics
    • Compact and magnetized
    • 3 voltage inputs and 3 current inputs
  • RMS and DC measurements
    • AC and/or DC voltages up to 1,000V
    • currents up to 10 kA AC or 5 kA DC (depending on the current sensor
    • active, reactive and apparent power values
    • active, reactive and apparent energy values
    • fundamental and balanced active power values and unbalanced active power values
    • measurements and characterization on motors (via Android application)
  • Functions
    • breakdown of energy losses
    • phase information: cos φ, tan Φ, power factor (PF)
    • crest factor
    • THD calculation for currents and voltages
    • DC, 50 Hz, 60 Hz and 400 Hz (Naval, etc.) measurements
General
Display None
Type of installation Single-phase, split-phase, three-phase with or without neutral, and many other specific configurations
Number of channels 3 voltage inputs, 3 current inputs (neutral current calculated)
Measurements
Network frequencies DC, 50Hz, 60Hz and 400Hz
Voltage (measurement ranges) 10 to 1,000Vac / 100 to 1,000Vdc
Current 5mAac to 10kAac / 50mAdc to 5kAdc
Calculated measurements
Ratio Up to 650V / up to 25,000A
Power (P, Pf, P+, Punb, Qf, N, D, S) 10W to 10GW / 10var to 10Gvar / 10VA to 10GVA
Energy Up to 4EWh / 4EVAh / 4Evarh (E = 10 18 )
Phase cos φ, tan Φ, PF
Harmonics THD
Additional functions
Phase order Yes
Min/Max Yes
Alarm Yes
Mounting Magnet
Recording
Acquisition rate / Aggregation period 5 measurements/s - 1 min to 60 min
Data storage SD card, 8GB (up to 32GB on SD-HC card)
Communication USB, Ethernet, Wifi (Access point and Hotspot), IRD Server DataView® Synch
Power supply 110V - 250V (+10%, -15%) at 50-60Hz & 400Hz
Safety IEC61010 600V CATIV and 1000V CATIII
