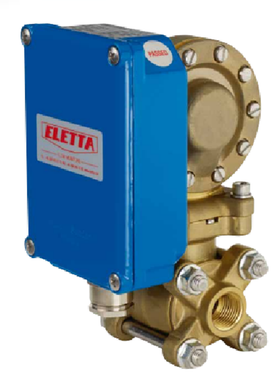

The Eletta V-series Flow Monitor is used to control flow of liquids and gases in pipes from 15mm to 500mm. Through the adjustable SPDT micro switch it is possible to set one low or high flow alarm to protect expensive equipment in various piping systems. The switching point is highly repeatable, within < 2%.
The Flow Monitor is insensitive to surrounding magnetic fields and it combines the long-standing proven mechanical function with outstanding reliability. Together with an exceptionally sturdy and robust design, this makes it extremely well suited for difficult environments.
The V-series comes in two measuring ratios designated V1 and V15, which means that the V1 has a flow measuring span of 1:2 and the V15 has a span of 1:5. Like all Eletta Flow Monitors the V-series can monitor both liquids and gases.

Flow range	0,4 – 25 000 l/min (liquid)
Minimum flow	V1: 50% of the full scale flow range V15: 20% of the full scale flow range
Wetted Material	Copper alloy, painted cast iron. seaworthy stainless steel 904L, stainless steel, 316
Rubber Parts	Nitrile (HNBR), EPDM and Fluorinated rubber (FPM)
Max pressure	16 bar (232 PSI)
Maximum temperature control unit	90°C standard, 120°C optional
Maximum temperature pipe section	-GL and -FA: 120°C (248°F) -GSS, -FSS: 250°C (482°F)
Enclosure	IP65 (NEMA4)
Process connections	DN 15-40, BSP/NPT thread DN 15-500 DIN/ANSI flange (wafer)
Alarm	V1 and V15 have one (1) micro switch contact, independently adjustable within the ordered Flow range
Micro switch spec	Contact surfaces are silver plated as standard. Type: SPDT Hysteresis: 10% Rated voltage: 480VAC 15A Breaking current: 15 @ 125, 250, 480VAC Resistive load: 2A @ 30VDC, 0.4A@125VDC, 0,2A @ 230VDC
Repeatibility	<2% actual
