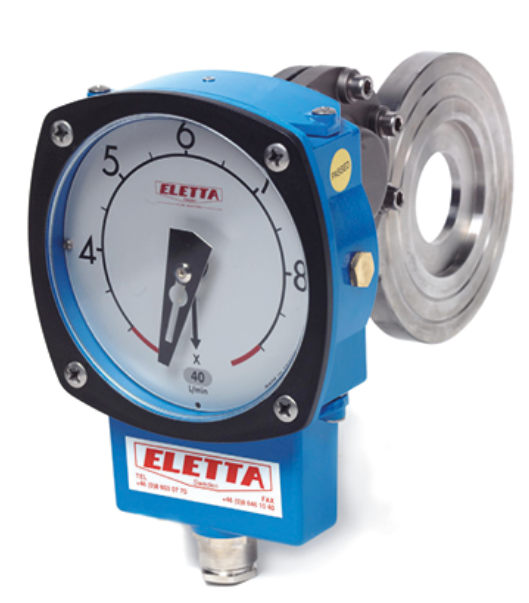

The S-series have a large and easy readable dial of 120mm which is clearly visible even in a harsh and dusty industrial environment. It has two micro switch setpoints which are independently adjustable within the measuring range and they can be set for high and low flow alarms for example, to protect expensive equipment in various piping systems.
The Monitor is insensitive to surrounding magnetic fields and it combines the long-standing proven mechanical function with outstanding reliability. The S-series can also be ordered without the micro switches, designated S0-series, and is then used as a direct reading flow monitor only.
This model offers explosion proof option.

Flow range	0,4–25 000 l min (liquid), to choose the right range, please refer to table of measuring ranges
Flow turndown	2 – 1:2 S25 – 1:5
Wetted Material	Copper alloy, painted steel, seaworthy stainless steel 904L, stainless steel, 316L
Rubber Parts	Nitrile (HNBR), EPDM and Fluorinated rubber (FPM)
Min pressure*	Appr. 700 – 1000 mbar (0,7 – 1 bar)
Max pressure	16 bar (232 PSI)
Maximum temperature control unit	90°C standard, 120°C optional
Maximum temperature pipe section	-GL and -FA: 120°C (248°F) -GSS, -FSS
Enclosure S series	IP43 (NEMA3R) std. IP65 (NEMA4) option
Enclosure SS series	IP65 (NEMA4) std
Process connections	DN 15-40, BSP/NPT thread DN15-500 DIN/ANSI flange (wafer)
Alarm contacts	S2 and S25 has 2 (two) micro switch SPDT contacts, independently adjustable within the ordered Flow range. S02 and S05 comes without switches
Micro switch spec	Contact surfaces are silver plated as standard. Type: SPDT Hysteresis: 10% Rated voltage: 480VAC 15A Breaking current: 15 @ 125, 250, 480VAC, 2A @ 30VDC Resistive load: 0,4A @ 125VDC, 0,2A @ 230VDC
Accuracy	<±5% F.S within 20–80% of flow range <±10% F.S within 100% of flow range
Display (option)	< 2% actual
