EGIL200 Circuit Breaker Tester

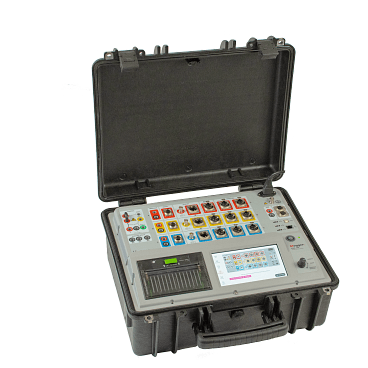

The EGIL200 circuit breaker tester is the first incarnation in a new range of circuit breaker analysers from Megger. It has been designed in close cooperation with global industry reference groups, drawing experience from the market leading and hugely successful Megger TM series of circuit breaker analysers. The emphasis in the development of the EGIL200 has been on ease of use, ensuring that the time spent on setting up measurements is kept to a minimum. As such, with the EGIL200, you can get your test results in no time. Connection to the test object has also been streamlined so you only need to connect the test leads once to perform all the following measurements or operations:
1. Timing of main and PIR contacts
2. Coil current analysis of close, open 1 and 2 coils
3. Station voltage measurements
4. Motion measurements
5. Motor current measurement
With both the main instrument and its accessories designed for the most demanding field conditions, the EGIL200 is your complete toolbox for daily, hassle-free circuit breaker condition assessments.
Control section
General
Control pulse outputs: Close, open 1 and open 2 (Galvanically insulated from earth and each other)
Time base inaccuracy: ±0.01 % of reading ±1 sample interval
Max. sample rate: 40 kHz
Measurement time: 36 s at 10 kHz sample rate
Non-bouncing switch
Max. current: 20 A AC / DC, pulse ≤ 20 ms
Max. continuous current: 5 A
Duration: User configurable in steps of 1 ms
Delay: User configurable in steps of 1 ms
Current measurement
Measurement range: ±20 A
Resolution: 16 bits
Inaccuracy: ±2 % of reading ±0.1 % of range
Voltage measurement
Max. voltage: 250 V AC, ±300 V DC
Measurement range: ± 400V
Resolution: 16 bit
Inaccuracy: ±1 % of reading ±0.1 % of range
Timing M/R section
General
No. of channels: 3,6 or 12 selectable at ordering
Time base inaccuracy: ±0.01 % of reading ±1 sample interval
Min. resolution: 0.05 ms
Max. sample rate: 40 kHz
Measurement time: 36 s at 10 kHz sample rate
Timing of main and resistor contacts
Open circuit voltage: Toggling ±12 V ±10 %
Short cicuit current: 22 mA ±10 %
50/60 Hz interference suppression: Active Interference Suppression, Megger patent
Transient disturbance suppression: Smart digital filter
Status threshold
Main: Closed < 10 Ω < Open (Factory default)
Main and resistor: Main < 10 Ω < PIR < 10 kΩ < Open (Factory default)
PIR resistance measurement
Supported PIR types: Linear PIR
Measurement range: 10 Ω – 10 kΩ
Inaccuracy: ±10 % of reading ±0.1 % of range
Voltage measurement (Only TIMING M/R, DRM/VDS inputs)
Measurement ranges: ±50 V and ±2.5 V
Resolution: 16 bits
Inaccuracy: ±1 % of reading ±0.1 % of range
Analogue section
General
No. of channels: 1 or 3 isolated channels
Time base inaccuracy: ±0.01 % of reading ±1 sample interval
Max. sample rate: 40 kHz
Measurement time: 36 s at 10 kHz sample rate
Transducer resistance: 500 Ω – 5 kΩ
Output
Voltage: 10 V DC ±5 %
Max. output current: 30 mA
Voltage measurement
Max. voltage: ±10 Vpeak
Measurement ranges: ±1 V and ±10 V
Resolution: 16 bits
Inaccuracy
1 V range: ±0.1 % of reading ±0.1 % of range
10 V range: ±1 % of reading ±0.1 % of range
External current measurement
Max. input: ±1 Vpeak
Scaling: Selectable in software
