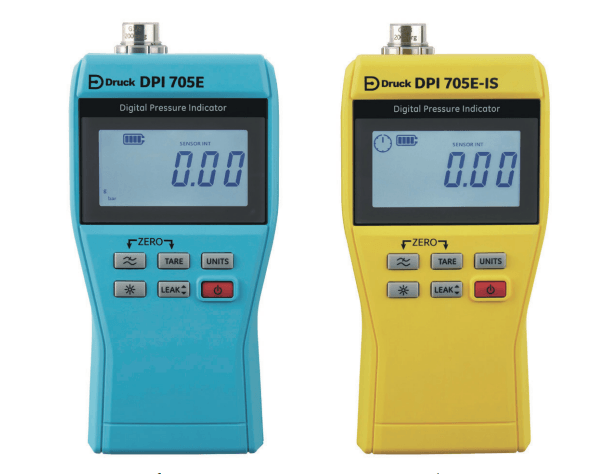

The Druck DPI705E Series of handheld pressure and optional temperature indicators combine tough and rugged design with accurate and reliable measurements. Compact and robust, the DPI 705E Series is designed for single handed operation and provides many essential features required for routine maintenance and system troubleshooting.
  • 41 pressure ranges from ±25 mbar to 1,400 bar (±10 inH20 to 20,000 psi/2.5 kPa to 140 MPa)
  • Total 1 year uncertainty down to 0.025% full scale (FS) over temperature range of -10°C to +50°C
  • Integral calibration record with calibration due count-down display
  • Rugged, handheld design with backlit high-contrast display
  • Leak test, tare, maximum/minimum and filter functions
  • Hazardous Area (Intrinsically safe) version available
  • Optional remote plug and play pressure (PM700E) and Resistance Temperature Detector (RTD-PROBE) sensors
  • Compatible with our pneumatic and hydraulic hand pumps
Pressure measurement range 25mbar, 70mbar, 200mbar, 350mbar, 700mbar, 1bar, 2bar, 3.5bar, 7bar, 10bar, 20bar, 35bar, 70bar, 100bar, 135bar, 200bar, 350bar, 700bar, 1000bar, 100bar
Accuracy
  • Standard : ± 0.1% FS Total accuracy over -10 to 50°C
  • High : ± 0.05% FS Total accuracy over -10 to 50°C
  • Premium : ± 0.025% FS Total accuracy over -10 to 50°C
Ingress protection IP54
Shock/vibration MIL-PRF-28800F for Class II equipment.
1 m Drop Tested @ -20°C (-4°F)
EMC BS EN 61326-1
Electrical safety BS EN 61010-1
UL 61010-1
Pressure safety Pressure equipment directive class SEP. UL61010
Safe to 2xFS
Intrisically safe version Available
