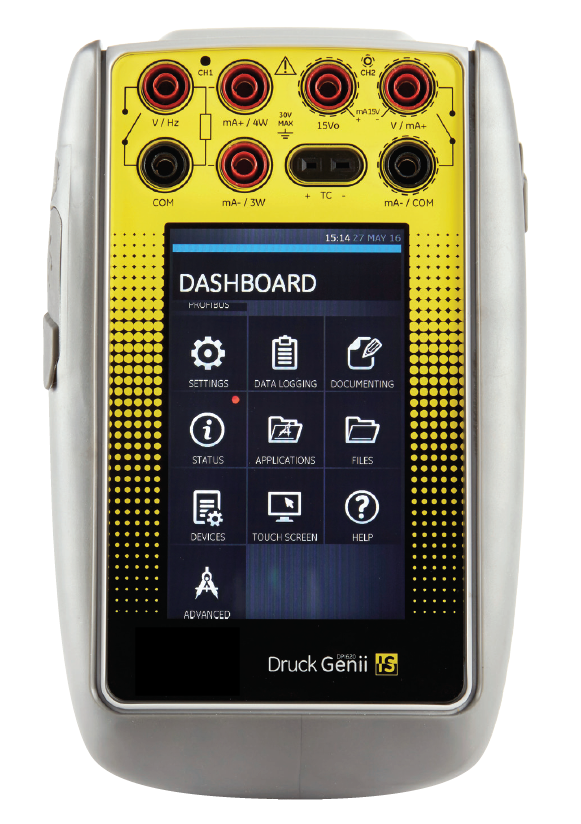

This ultra-compact electrical, frequency and temperature calibrator with full HART communicator and optional Foundation Fieldbus communicator provides simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.

• High resolution touch display and UI (user interface) supporting gestures and swipes for a flatter menu structure and greater ease of use
• HART and Foundation Fieldbus digital communication with complete device description libraries, internal modems and free of charge upgrades
• ATEX and IECEx approved system for use in zone 1 and 2 classified hazardous areas.
• ETL approved for use in class I zone 1 hazardous locations
• UI DASHBOARD to quickly launch applications such as CALIBRATOR, HART and Foundation Fieldbus
• TASK menu allows single touch configuration for common devices such as pressure and temperature transmitters, transducers, switches, and valve positioners. Most used and user configured tasks can be added to FAVOURITES
• All first generation DPI620 and the new Genii system components are fully interchangeable e.g., pressure stations, pressure modules and all accessories

Display	Size: 110 mm (4.3in) diagonal. 480 x 272 pixels LCD: Color display with touch-screen
Processor and memory	Size: 110 mm (4.3 in) diagonal; 480 x 800 pixels LCD: Color display with touch-screen Protected by 2 mm toughened glass, impact tested in accordance with BS EN 61010-1:2010 (0.5 kg object from 1 m)
Ingress protection	IP54
Shock/vibration	BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2
EMC	BS EN 61326-1:2013
Electrical safety	BS EN 61010-1:2010
Pressure safety	Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Power supply	8 x AA alkaline batteries Optional mains adaptor P/N IO620-PSU 100 – 260V +/- 10%, 50 / 60Hz AC, Output DC V=5A, 1.6A
Connectivity	USB type A, USB type mini B
