These fully self-contained pressure test and calibration systems have interchangeable pressure modules for flexible ranging, generate pneumatic or hydraulic pressures, measure process signals and supply loop power. They provide all the convenience of the Druck DPI 610/615 series with significantly improved generation capabilities, higher accuracy and simplified touch screen operation.

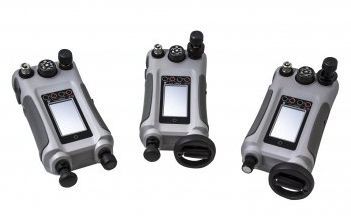

• Three model choices to generate from 95% vacuum to 1000 bar/ 15000 psi
  • DPI 612 pFlex: 95% vacuum to 20 bar/300 psi
  • DPI 612 pFlexPro: 95% vacuum to 100 bar/1500 psi
  • DPI 612 hFlexPro: 0 to 1000 bar/15000 psi
• Generates 0 to 20 bar/300 psi in less than 30 seconds
• Creates 95% vacuum
• 31 interchangeable pressure modules from 25 mbar/10 inH20 to 1000 bar/15000 psi
• “Quick-to-fit” pressure adapter/hose system
• Pressure measurement is twice as accurate
• Three times better electrical accuracy
• Simplified touch screen interface with application DASHBOARD, quick TASK selection, and FAVORITES storage
• Fast, three touch set-up for any application
• Calculates PASS/FAIL errors, documents results, and interfaces with calibration software

Measurement range	pFlex: 0-2bar abs, 0-7bar abs, 0-20bar g/abs, -1-1bar g, -1-2bar g, -1-7bar g, -1-10bar g, -1-20bar g pFlexPro: 0-20bar g/abs, -1-20bar g, 0-35bar g, 0-70bar g, 0-100bar g hFlexPro: 0-200bar g, 0-350bar g/abs, 0-700bar g/abs, 0-1000bar g/abs
Display	Size: 110 mm (4.3in) diagonal. 480 x 272 pixels LCD: Color display with touch-screen
Internal memory	8Gb (nominal) user memory for automated procedures, calibration data and data log files
Ingress protection	IP54
Shock/vibration	BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2. 1 m drop tested
EMC	BS EN 61326-1:2013
Electrical safety	BS EN 61010-1:2010
Pressure safety	Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Power supply	Lithium-ion battery Capacity: 3800 mAh 14.1Wh Nominal voltage: 3.7 V 8 AA alkaline cells
Connectivity	USB type A, USB type mini B
