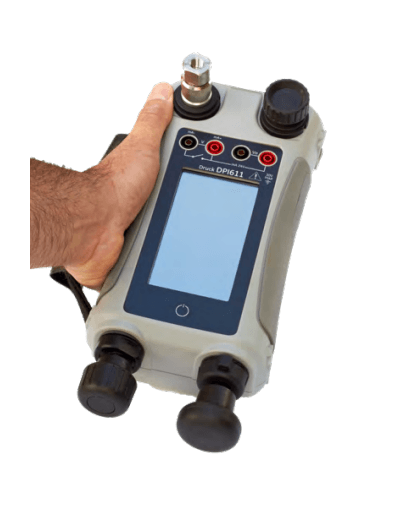

The DPI 611 is the fourth generation in the DPI 600 family, which was first introduced in 1984. The DPI 600 family revolutionized test and calibration by providing all the tools for pressure generation and signal measurement in self-contained, portable packages. The DPI 600 soon became the industry workhorse and today it is simply known as the “Druck.”
Building on the technical legacy of more than four decades of experience in pressure measurement and calibration, the DPI 611 provides all the convenience and reliability of a true “Druck,” yet offers twice the performance in a product half the size. Features include:

• 50% smaller and 33% lighter than the DPI 610
• Generates 0 to 20 bar/300 psi in less than 30 seconds
• Creates 95% vacuum
• Pressure measurement is twice as accurate
• Three times better electrical accuracy
• Simplified touch screen interface with application DASHBOARD, quick TASK selection, and FAVORITES storage
• Fast, three touch set-up for any application
• Calculates PASS/FAIL errors, documents results, and interfaces with calibration software

Measurement range	1bar, 2bar, 7bar, 10bar, 20bar
Display	Size: 110 mm (4.3in) diagonal. 480 x 272 pixels LCD: Color display with touch-screen
Processor and memory	Size: 110 mm (4.3 in) diagonal; 480 x 800 pixels LCD: Color display with touch-screen Protected by 2 mm toughened glass, impact tested in accordance with BS EN 61010-1:2010 (0.5 kg object from 1 m)
Ingress protection	IP54
Shock/vibration	BS EN 61010-1:2010 / MIL-PRF-28800F CLASS 2
EMC	BS EN 61326-1:2013
Electrical safety	BS EN 61010-1:2010
Pressure safety	Pressure Equipment Directive - Class: Sound Engineering Practice (SEP)
Power supply	8 x AA alkaline batteries Optional mains adaptor P/N IO620-PSU 100 – 260V +/- 10%, 50 / 60Hz AC, Output DC V=5A, 1.6A
Connectivity	USB type A, USB type mini B
