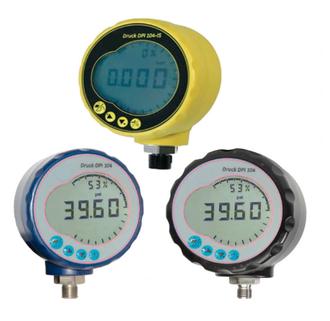

DPI104 Digital Pressure Gauges
The DPI104 is a microprocessor-controlled digital pressure
gauge that combines precision and functionality in a
compact, robust and simple-to-use package. The DPI104
matches advanced silicon sensor technology with several
convenient design features, resulting in an accurate, versatile
yet affordable digital test gauge. Supplied as a stand-alone
process indicator or in a kit with the widely proven Druck
hand pumps, the DPI104 provides a reliable and economic
solution for a wide range of pressure sensing applications.
DPI104 is available in Intrinsically Safe (IS) version for
use in hazardous environments.
- 0.05% full scale (FS) accuracy
- Pressure ranges to 20,000 psi (1,400 bar)
- Eleven selectable pressure units
- Large, easy-to-read display with a five-digit resolution
- % pressure indication and additional bar graph for quick visual reference
- Temperature-compensated accuracy from 14°F to 122°F (-10°C to 50°C)
- 0 to 5V analog output
- Pressure switch test
- Minimum/maximum, tare, and alarm functions
- IDOS compatible and RS232 serial interface
- Free of charge monitoring and control software
- Stainless steel or Inconel pressure cavity for aggressive media
- Available in Intrinsically Safe (IS) version for use in hazardous environments
| Measurement range | 0.7bar, 2bar, 7bar, 20bar, 70bar, 200bar, 350bar, 700bar, 1000bar, 1400bar |
| Display |
|
| Ingress protection | IP65 |
| Shock/vibration | BS EN 61010:2001 / Def Stan 66-31, 8.4 Cat III |
| EMC | BS EN61326-1:1998 + A2:2001 |
| Electrical safety | BS EN 61010:2001 |
| Pressure safety | Mechanical Safety Pressure Equipment Directive—Class: Sound Engineering Practice (SEP) |
| Power supply | 9V alkaline battery |
| Connectivity | RS232 interface |
