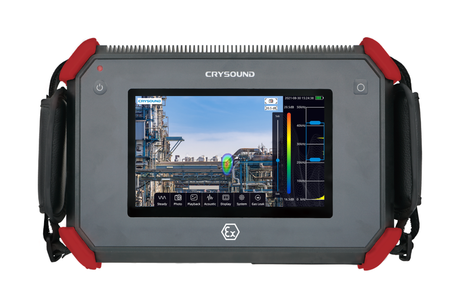

CRY2624 Industrial Acoustic Imager is suitable for use in explosion-proof scenarios in chemical and energy industry. The device adopts the aluminum alloy shell, which is sturdy and durable, and can adapt to the complex and changeable working environment. Real-time sound image display, helping the detection of pressurized or vacuum leaks significantly faster compared to other previous methods.

• High-Performance Microphones for Efficient Detection With ATEX Certification
  • 128 digital MEMS microphones can provide exceptionally high sensitivity, sound resolution and detection accuracy, real-time audio-visual display, anti-jamming, help detection.
• Leakage Assessment
• By activating the leak measurement function, the camera continuously displays the amount of leaks and losses as well as the level of loss.
• PD Detection & PD Type Identification
  • Partial discharges can be detected before more serious faults would occur, even before a thermal camera would detect them.
• Analytics and Reports
  • Template-based processing and recording of data, waveforms,spectra,spectrograms is supported by CRYSOUND report analysis tool software, generating ISO 50001 compliant, editable protocols in Excel format.

Acoustic specification
Microphone array	128 channels MEMS microphone
Effective test bandwidth	2kHz-40kHz
Dynamic range	0.5dB-12dB user adjustable
Test sound pressure level range	25.7 - 132.5dBA
Auto max/min dB gain	User-settable minimum test bandwidth 1kHz
Number of digits	24bit
Sound image FOV	62°
Sound image frame rate	At least 25 FPS
Leak detection rate s	10m 5bar 0.92ml/s 0.5m 5bar 0.55ml/s
Detect distances	0.3m-120m
Camera
Camera FOV	62°
Camera focal length	3.04mm fixed focal length
Camera pixel	8 million pixel
Storage
Internal storage	About 8GB
External storage	TF memory card, at least 64G, expandable to 256G
Data storage format	Picture: .jpg Video: .mp4 Recording: .wav
Video length	5 minutes
Digital export	TF Card
