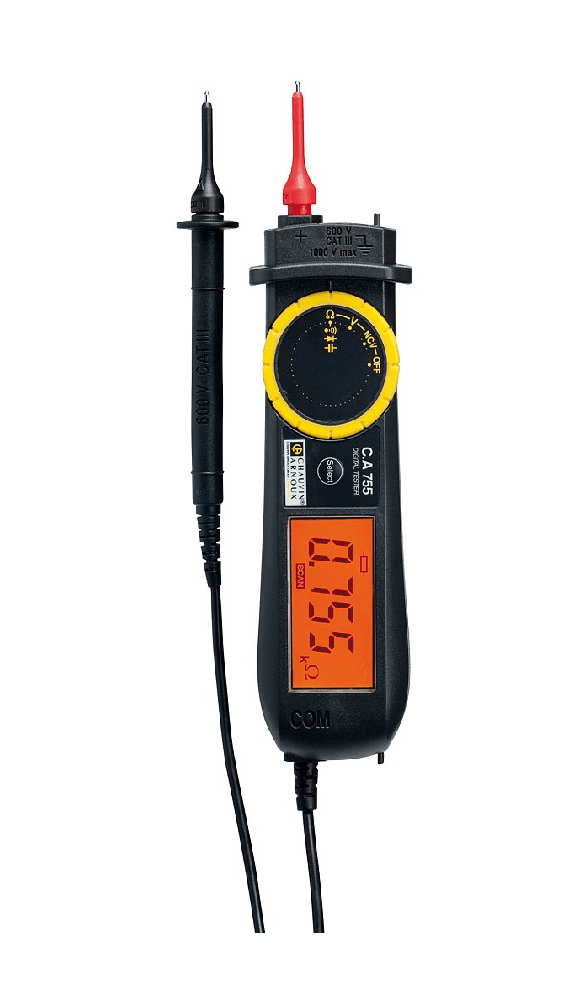

C.A 755 Voltage and Continuity Tester

The C.A755 is an essential tool for your test and maintenance work for electricians, heating engineers and maintenance technicians. It enables you to work in total safety:

- double insulation

- protection against electric shocks up to 6 kV in voltage mode

- protection up to 1,000 V for continuity, resistance and capacitance tests

- no-contact voltage detection

- indication if a hazardous voltage is present

- automatic power-off after 10 minutes' inactivity

Specifications

  • DC voltage test between 3mVDC to 1000 VDC
  • AC voltage test between 100mVAC to 1000VAC
  • Resistance test between 0.3Ω to 30MΩ
  • Audible continuity for R≤30Ω
  • Capacitance measurement between 400pF to 30mF
  • Diode test for junction voltages between 300 mV and 2 V
  • No-contact voltage detection
  • IP54
  • Electrical safety: 600 V CAT III, IEC 61010-1, IEC 61010-031, IEC 61010-032, IEC 61010-033
