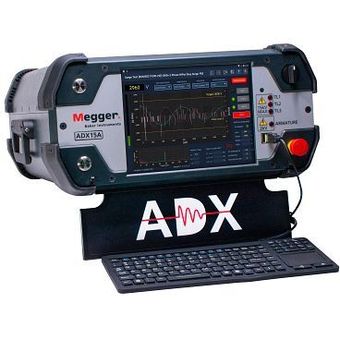

ADX Automated Static Motor Analyser
The Megger Baker ADX automated static motor analyser is an innovative and transformational leap forward for motor testing in today’s demanding workplaces. It offers a comprehensive set of tests for assessing the health of electric motors, for monitoring and analysing trends in motor condition, and for locating faults. The portable ADX analysers provide, depending on the model, high voltage tests for surge, turn-to-turn partial discharge, insulation resistance, polarisation index, DC hi-pot and step voltage tests, as well as low voltage tests for winding resistance, inductance, and capacitance. A single set of plug-in high voltage Kelvin test leads means there is no need to change leads between tests.
All ADX analysers offer a choice of manual, automatic or sequenced testing. They also support configurable route-based site testing and incorporate a full range of asset management tools. Test results are displayed on an integrated 10.4-inch daylight viewable touch screen and are stored locally within the instrument. In addition, when an internet connection is available, the results are automatically synchronised with the cloud-based PowerDB Dashboard application which provides additional facilities for analysis, reporting, and archiving.
Megger Baker ADX static motor analysers are available in versions that support high voltage testing up to 4 kV, 6 kV, 12 kV, or 15 kV. All can be supplied in a basic configuration that offers DC insulation resistance, polarisation index, DC hi-pot and surge tests only, or in configurations with additional options that include low voltage resistance, inductance, and capacitance test, and facilities for partial discharge testing. A 15 kV unit with integral bar-to-bar surge test capability for DC armatures is also available.
General
Mains Power Input: 90–264 VAC, 47–63 Hz, 2.5 A, CAT II 300 V
Maximum generated voltage (Peak voltage for AC or DC test):
ADX4: Nominal 100 V–4 kV
ADX6: Nominal 100 V–6 kV
ADX12: Nominal 100 V–12 kV
ADX15: Nominal 100 V–15 kV
ADX15A: Nominal 100 V–15 kV
Standard Kelvin 4-wire test leads voltage rating: 16 kV DC peak
DC IR and HiPot test
Voltage accuracy: ± 2% ± 5 V
Maximum output current: 1.2 mA
Displayed current resolution: 1 nA
Current measurement resolution: 16 pA
Current accuracy:
Test voltage 0–2 kV: ± 4% ± 5 nA
Test voltage 2–4 kV: ± 4% ± 10 nA
Test voltage 4–8 kV: ± 4% ± 25 nA
Overcurrent trip settings: Adjustable to 1.2 mA
IR measurement range: 100 kΩ–1 TΩ IR
Surge test
Nominal surge capacitance: 100 nF
Typical surge energy: 11.25 J at 15 kV
Typical short circuit current: 700 A
Repetition rate: 4 Hz nominal
Minimum inductance:
4 kV: 70 μH
6 kV :100 μH
12 kV: 120 μH
15 kV: 170 μH
Voltage accuracy: ±10%
Surge with Partial Discharge (PD) test
Inception and extinction voltages (PDIV, PDEV): Measured per IEC 61934
Repetitive inception and extinction voltages: (RPDIV, RPDEV) Measured per IEC 61934
Programmable PD threshold range (Resolution to 0.1 mV): 1.0–999 mV
PD time scaling: 1.024–26,400 μs
Resistance test
Measurement range: 0.001 mΩ–1 MΩ
4-wire measurement: Yes
Maximum test current: 10 A
Accuracy: ±2% ±0.25 mΩ
Inductance test
Measurement range:
0.01 μH–10 H (120 Hz)
0.01μH–200 mH (1000 Hz)
4-wire measurement: Yes
Test frequency: 120, 1000 Hz
Capacitance test
Measurement range: 0.01 nF–50 μF
4-wire measurement: Yes
Test frequency: 4000 Hz
Accuracy: ±5% ±1 nF
