CONDITION MONITORING SYSTEMS

MACHINE PROTECTION

Machine protection systems are used to monitor bearing signals and vibration and automatically shut down the equipment should an alarm threshold be reached. Our systems use innovative sensor technology to bring installation costs down.
Download Brochure

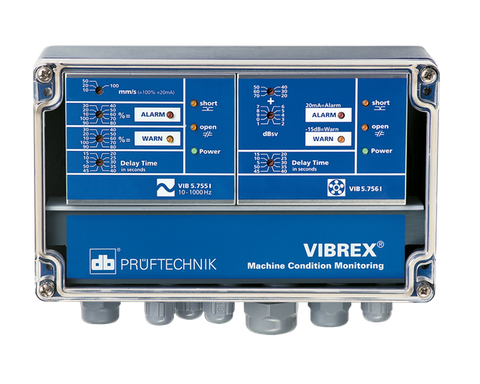

VIBREX
The modular and versatile machine protection system

Machine safety monitoring with VIBREX
  • Autonomous machine safety monitoring system
  • Vibration and bearing condition monitoring (Shock Pulse)
  • ISO-based vibration monitoring
  • Easy and low-cost installation
  • Zero potential relay outputs
  • Availabe in ATEX version
Machine monitoring à la carte with VIBREX modular system
VIBREX allows you to combine bearing and vibration monitoring on one or two channels according to your needs. The machine protection system is suitable for the vast majority of rotating machines such as pumps, motors, fans, stirrers, refiners and many more.

Should an alarm be triggered, VIBREX displays coloured LED signals indicating the change of condition of the machine. Alarms and warnings can also be transmitted to the control system via either the digital or the analog (4-20mA) output in order for the machine to be shut down if necessary.

VIBREX utilizes the Shock Pulse technique to evaluate anti-friction bearing conditions: high-frequency signals indicate bearing wear or damage long before failure. Vibration modules are available for standard severity rating according to DIN ISO 10816, or for special applications auch as gearboxes and low speed machines (down to 60 rpm).

VIBRREX brings investment costs down by using the patented dual-function Tandem-Piezo sensor to measure both machine vibration and bearing signals with fewer sensors and cables. You can use the same standard sensor for all applications and no signal amplifiers are required, even over large distances.

VIBREX is also availabe for intrinsically safe areas according to ATEX.

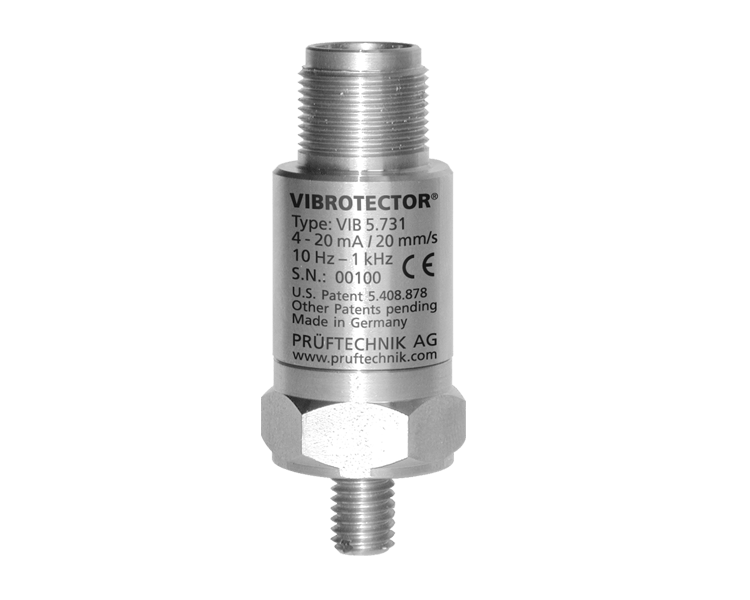

VIBROTECTOR
Vibration transmitter for alarm-based machine protection

VIBROTECTOR - The easy to implement vibration transmitter
  • Continuous vibration monitoring according to ISO 10816-3 and 7
  • No additional hardware required
  • Low installation costs
  • Easy integration into your control system
  • Robust compact design
  • 4-20mA output
  • Also available for ATEX / IECEx Zone 1/21
VIBROTECTOR prevents machine failure
VIBROTECTOR is the ideal vibration monitoring transmitter for all machines running under constant operating conditions such as: fans, ventilators, pumps or electric motors.

VIBROTECTOR is probably the easiest and most cost-effective solution to protect your machines from damage and failure by detecting irregular vibration. The vibration transmitter sends the broadband characteristic values (as 4-20mA current level) directly to the connected process controller. If an alarm value according to DIN ISO 10816-3 or -7 is exceeded, the operating or maintenance

personnel are immediately informed. If the vibration values are too high, the process control can automatically shut down the machine.

VIBROTECTOR is made of stainless steel and is also available for intrinsically safe areas according to ATEX and IECEx standards (Zone 1/21).
