ALIGNMENT SYSTEM

Geometric Measurement

Start up your machinery sooner, make it go longer! Our laser alignment tools help you easily check and adjust your machine geometries: straightness, flatness, level, inclination, plumbness, parallelism and right angle check.

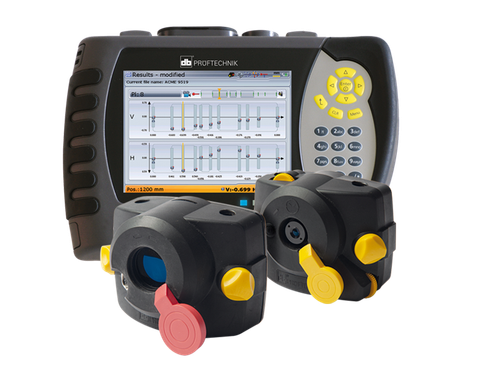

CENTRALIGN Ultra RS5
The superior solution for the alignment of bores, bearings and diaphragms

CENTRALIGN Ultra – modular power for demanding alignment jobs
  • True bore center measurement with exclusive brackets and measurement technology
  • Relative bore centerline measurement: determination of eccentricity error
  • Highest accuracy with measurement of at least three points over the bore
  • Universal pointer brackets, large bore brackets and customized brackets for bore diameters ranging from 45 mm (1.77“) to 4.230 mm (166.5“)
  • Laser range distance up to 50 m (1,968.50”) with the Long Range Laser
  • Measurement of both magnetic and nonmagnetic bores
  • Integrated inclinometer: measurement can be started at any angular position and performed in any direction
  • Convenient wireless data transmission between the sensor and the handheld device
  • Control sensor for automated compensation of potential laser drift (optional)
Product description
Proper repair and reconditioning of turbines, combustion engines, compressors and pumps require an exact alignment measurement of rotors, crankshaft and camshaft bores, cylinder bores and crosshead guides.
CENTRALIGN Ultra RS5 is a laser alignment system designed for the measurement and alignment of bores and internal elements of rotating machines such as bearing rings, diaphragms, nozzles, inner shells and turbine casings with tops on or off. It offers a far more convenient and accurate alternative to the traditional methods using piano wires, micrometers and cumbersome theodolite telescopes.

The CENTRALIGN Ultra RS5 measurement method uses a laser emitter which is mounted at one end of the machine and shoots through the approximate center of the bores. The laser beam serves thereafter as the measurement reference line. The sensor is mounted in the bore to be measured using the patented universal pointer brackets. The exact rotational centerline of the bore is then determined by simply rotating the sensor and the bracket head around the inside of the bore. The sensor records positional deviations relative the laser and sends the measured data to the ROTALIGN Ultra computer. The computer processes this information along with the machine dimensions involved to calculate the exact centerline position. When using the long range laser, the distance between laser and sensor increases up to 50 meters.

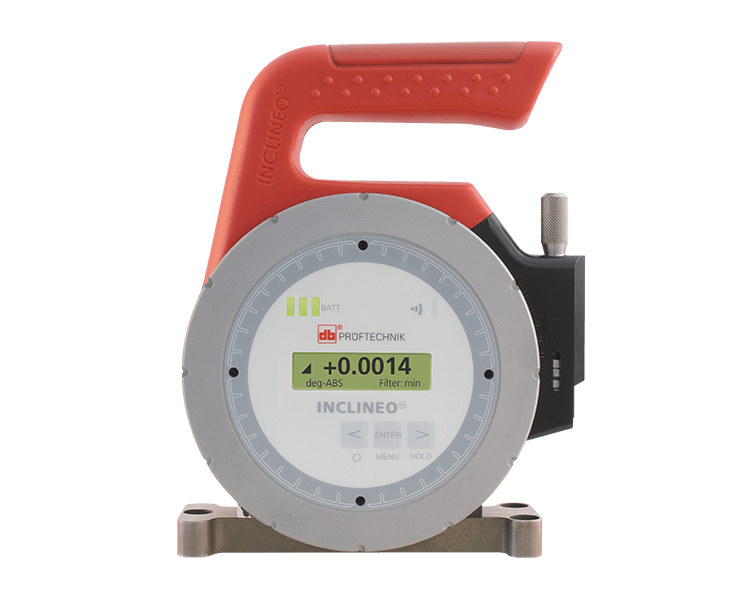

INCLINEO
High-performance laser alignment tool for flatness and inclination

Ideal machine geometry tool for installation and maintenance services
  • High precision electronic inclinometer for measurement of absolute or relative angles
  • Rotatable housing allows measurement on surfaces with any inclination
  • Outer ring with 30° marks and 5° scale on housing with integrated fine adjustment screw
  • Appropriate bracketing for different applications
  • Standalone or with powerful GEO CENTER PC-software
  • Wireless PC communication
Laser geometric alignment with INCLINEO
INCLINEO is a powerful laser alignment instrument based on a high precision electronic inclinometer technology. It measures angularity at different positions on a surface enabling exact determination of surface flatness. In combination with easy-to-mount bracketing, INCLINEO measures the inclination along edges and rails and even on vertical shafts.

The rotatable housing makes it possible to take measurements at any angular position, even top down. The integrated wireless technology, combined with its easy operation makes it a versatile and effective tool for installation and maintenance services. INCLINEO can be used as a standalone or in combination with the GEO CENTER software to accomplish a wide range of measurement tasks such as:
  • Determine foundation levelness
  • Measure surface flatness of engine blocks, compressor frames and machine bases
  • Measure parallelism of rails
  • Check profile of machined surfaces and geometry of machine tools
  • Evaluate shaft plumbness of hydro turbines

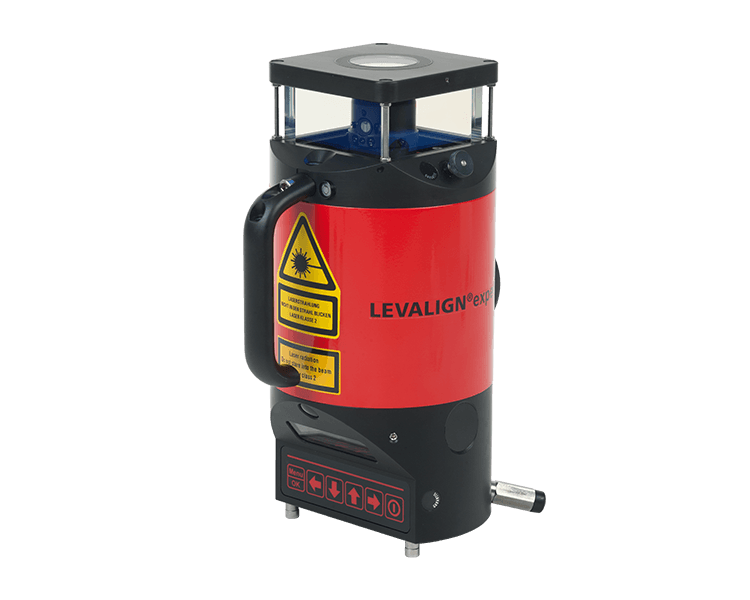

LEVALIGN expert
High-power laser for level, flatness, and straightness measurements

Wide-ranging geometric measurement tasks
  • Measure flatness, straightness, parallelism, perpendicularity and level of flanges and foundations
  • Efficient and easy one-man operation with self-leveling and spinning laser
  • Powerful laser with 100-meter measurement range in conjunction with a 70 mm (2.75 inches) range sensor
  • Integrated wireless communication
  • GEO CENTER PC-Software for measurement analysis and professional reporting
  • Also compatible with the sensALIGN 7 sensor
