MEGGER

DC diagnostic insulation testing

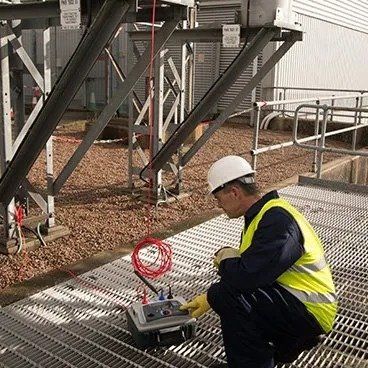

Diagnostic insulation testing today represents over a hundred years of constant development. When Sydney Evershed pioneered the first insulation tests in the late 19th century, the only measurable values were insulation at 500 volts and a basic continuity check. However, measurement techniques have continuously evolved to keep pace with new insulation technologies. From electronic design and household wiring to generators and power transmission systems, all different kinds of insulation must operate at a safe minimum value.

Diagnostic insulation testing delivers the most advanced measuring techniques to accurately report the health of modern high quality insulation and meet modern electrical standards. These electrical standards apply to testing cables, generators, circuit breakers, and many other electrical systems where insulation quality around the conductors must be at its best. For each system, Megger has the product best suited to conducting a comprehensive diagnostic insulation test. Our products are complemented by bespoke software that records all measurements and data, easing the process of information management.

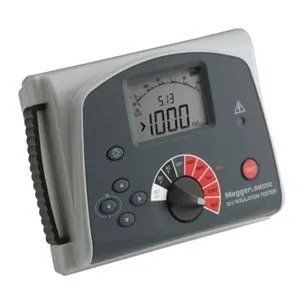

BM5200 - INSULATION RESISTANCE TESTER

  • 1 T Ω, 1.4 mA, 5 kV digital insulation tester with digital and analogue display
  • Five test ranges; 250 V, 500 V, 1000 V, 2500 V and 5000 V
  • Insulation (InS), Polarization Index (PI) and variable timed test (t) modes
  • Selectable DC or AC (including frequency) voltmeter functions
  • Guard terminal to shunt surface leakage currents
  • CATIII 600 V safety rating
Megger BM5200 is a battery powered insulation tester with digital and analogue arc display, designed for high voltage insulation resistance testing in the maintenance and servicing of cables, rotating plant machinery, transformers, switchgear and industrial applications.

DC insulation tests are performed at 250 V, 500 V, 1000 V, 2500 V, 5000 V. Insulation resistance measuring range is 100 k Ω to 1000 G Ω. Automatic discharge for capacitive circuits under test is provided and decaying voltage displayed.

The guard terminal can be used to minimize the effects of surface leakage and hence erroneous measurements when carrying out insulation resistance tests.

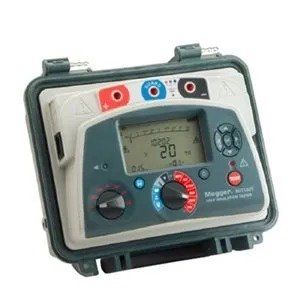

MIT1025 - 10 KV DIAGNOSTIC INSULATION RESISTANCE TESTER

  • Measures up to 20 TΩ
  • PI, DAR, DD, SV and ramp test
  • Improved productivity – operate from line power/mains if battery dead
  • Li ion battery - extended capacity, rapid charge
  • Advanced memory with time/date stamp
  • CATIV 600 V safety rating
Offering CAT IV, the MIT1025 is compact, light 10 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making it even easier to carry and store.

As well as measuring insulation resitance to 20 TΩ, the MIT1025 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

MIT1525 - 15 KV DIAGNOSTIC INSULATION RESISTANCE TESTER

  • Measures up to 30 TΩ
  • PI, DAR, DD, SV and ramp test
  • Improved productivity – operate from line power/mains if battery dead
  • Li ion battery - extended capacity, rapid charge
  • Advanced memory with time/date stamp
  • CATIV 600 V safety rating
Offering CAT IV safety, the MIT1525 is compact, light 15 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It benefits from the Megger dual case construction, Tough on the outside and fire retardant on the inside.

As well as measuring insulation resistance to 30 TΩ, the MIT1525 also offers various diagnostic tests such as Polarisation index, Dielectric Absorption Ratio, Step Voltage, Dielectric discharge and ramp testing.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

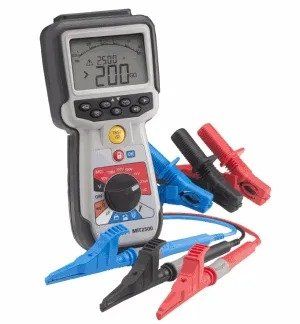

MIT2500 - HIGH VOLTAGE HAND-HELD INSULATION AND CONTINUITY TESTER

  • Insulation testing up to 2.5 kV and 200 GΩ range in a hand held instrument
  • Guard terminal for high resistance accuracy
  • Adjustable insulation test voltage from 50 V to 2500 V
  • Stabilised insulation test voltage
  • Rechargeable options for mains and car charging
  • Single range, faster continuity testing from 0.01 Ω to 1 MΩ
  • Polarisation Index (PI) & Dielectric Absorption Ratio (DAR)
  • CAT IV 600 V applications
The MIT2500 insulation and continuity tester has been designed for motor and cable testing, specialist applications and electrical testing applications, where operation voltages exceed 1000 V and higher insulation test voltages are needed.

The MIT2500 offers both fixed range voltages of 50 V, 100V, 250 V, 500 V, 1000 V and 2500 V, as well as a variable range that allows any voltage between 50 V and 2500 V to be “dialled in”. This is supported by the new test voltage feedback control, which maintains the output test voltage to within 2% of the selected range, even when under test.

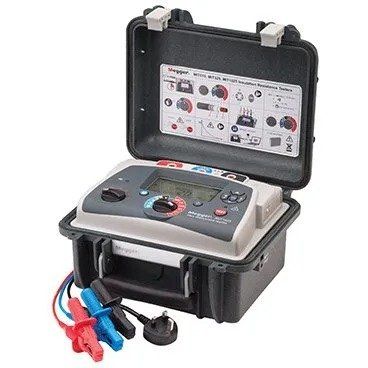

MIT515 - 5 KV GO / NO-GO INSULATION RESISTANCE TESTER, INSULATION TESTER

  • Measures up to 10 TΩ
  • Selectable test voltage from 250 to 5000 V
  • PI, DAR, DD test
  • Improved productivity – operate from line power/mains if battery dead
  • Li ion battery - extended capacity, rapid charge
  • CATIV 600 V safety rating
Offering CAT IV, the MIT515 is the simplest of Megger's new range of small light 5 kV insulation resistance testers for the testing and maintenance of high voltage electrical equipment. Enclosed in a tough case it is both smaller and lighter than its predecessor making it even easier to carry and store.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy to read, display making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

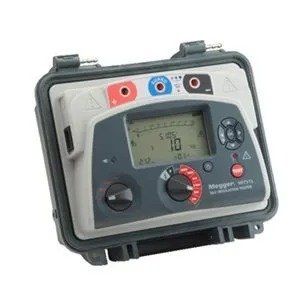

MIT525 - 5 KV DIAGNOSTIC INSULATION RESISTANCE TESTER

  • Measures up to 10 TΩ
  • PI, DAR, DD, SV and ramp test
  • Improved productivity – operate from line power/mains if battery dead
  • Li ion battery - extended capacity, rapid charge
  • Advanced memory with time/date stamp
  • CATIV 600 V safety rating
Offering CAT IV, the MIT525 is compact, light 5 kV insulation resistance tester for the diagnostic testing and maintenance of high voltage electrical equipment. It is both smaller and lighter than its predecessor, making it even easier to carry and store.

As well as measuring insulation resistance to 10 TΩ, the MIT525 also offers various diagnostic tests such as polarisation index, dielectric absorption ratio, step voltage, dielectric discharge and ramp testing.

Now equipped with lithium ion fast rechargeable batteries, the instrument has a large, clear, easy-to-read display, making it equally suitable for use in both bright sunlight and poorly lit environments. Information displayed includes resistance, voltage, leakage current, capacitance, battery status and time constant. In addition, the elapsed time of the test is displayed constantly removing the need for separate timer.

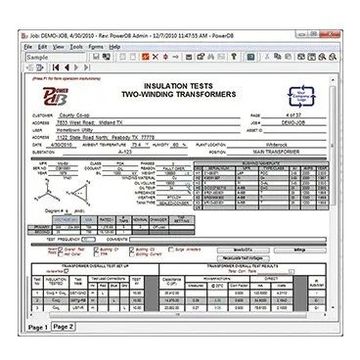

PowerDB™ Pro - ACCEPTANCE & MAINTENANCE TEST DATA MANAGEMENT SOFTWARE

FULL DATABASE CAPABILITIES
  • An entire organization’s results can be synchronized into a single database, scalable to Microsoft SQL Server, for easy retrieval and review.
  • One-step report generation maximizes timeliness and facilitates NERC compliance audits.
  • Easily trend results over time and compare to similar assets.
  • Track maintenance intervals and generate work orders for scheduled assets.
  • Merge results from multiple test instruments with data imports from other sources to facilitate queries and sorting. nMaintain calibration data for test instruments.

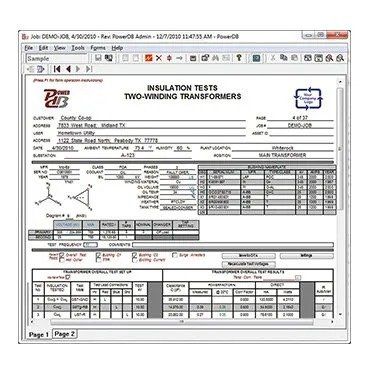

The Megger PowerDB is a powerful software package providing data management for each of your acceptance and maintenance testing jobs.

Customer and contract information is quickly sorted and searched. Opening a specific record shows detailed information about the job, such as type of service, order date, sales contact, and invoice information. Job information and related test results can be transferred between field-use databases and a master database. Job and Device Productivity Reports track the time spent testing, which aids in bidding future jobs as well as personnel evaluation.

Test Forms
Designed from a ground up approach, PowerDB utilizes over 160 industry standard test forms that have been developed and used over 20 years by industry specialists. Test data entry screens and printed forms are identical allowing intuitive operation. What you see on the screen is what is printed in the reports. Entire test documentation packages consisting of test reports, comment & deficiency summaries, table of contents and field service reports are created with a single step. Once created, reports can be delivered electronically via email, CD-ROM, web server or Adobe® Acrobat®.

Test forms are designed for the majority of the electrical apparatus on the market today.

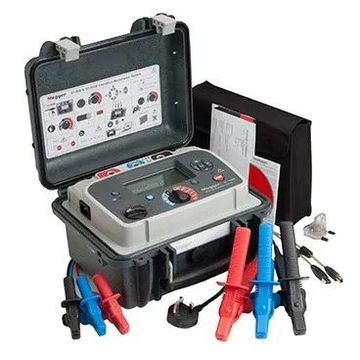

S1-1068 - 10 KV HIGH PERFORMANCE DIAGNOSTIC INSULATION TESTER

  • Proven ability to make accurate stable measurements in noisy environments such as 765kV substations
  • Rapid charge of capacitive loads such as HV power cables
  • Additional safety in high energy locations with remote operation
  • Always ready to test with fast charge Li-ion battery or a.c. source operation
  • Tough enough to survive harsh environments
S1-1068 10 kV insulation resistance testers has been designed, specified and tested to meet the stringent requirements of power utilities in the 21st century. In addition to being tough, high performance insulation testers the S1-1068 Megger offers the ability to perform accurate insulation resistance measurements in extreme, high noise environments, rapid charging of cable capacitance, and even remote operation for both convenience and safety.

For service companies the S1-1068 represents an excellent choice with its flexibility and future proofing capability.

Quite simply the Megger S1-Series is designed to work wherever you work.

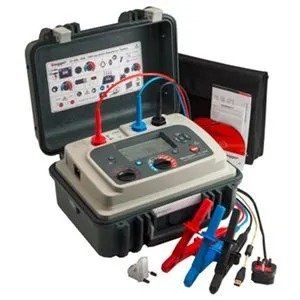

S1-1568 - 15 KV HIGH PERFORMANCE DIAGNOSTIC INSULATION TESTER

  • Proven ability to make accurate stable measurements in noisy environments such as 765kV substations
  • Rapid charge of capacitive loads such as HV power cables
  • Resistance measurement up to 35 TΩ with 8 mA noise rejection plus 4 filters
  • Additional safety in high energy locations with remote operation
  • Always ready to test with fast charge Li-ion battery or AC source operation
  • Tough enough to survive harsh environments
S1-1568 15 kV insulation resistance testers has been designed, specified and tested to meet the stringent requirements of power utilities in the 21st century. In addition to being tough, high performance insulation testers the S1-1568 Megger offers the ability to perform accurate insulation resistance measurements in extreme, high noise environments, rapid charging of cable capacitance, and even remote operation for both convenience and safety.

For service companies the S1-1568 represents an excellent choice with its flexibility and future proofing capability.

Quite simply the Megger S1-Series is designed to work wherever you work.

S1-568 - 5 KV HIGH PERFORMANCE DIAGNOSTIC INSULATION TESTER

  • Proven ability to make accurate stable measurements in noisy environments such as 765 kV substations
  • Rapid charge of capacitive loads such as HV power cables
  • Additional safety in high energy locations with remote operation
  • Always ready to test with fast charge Li-ion battery or a.c. source operation
  • Designed to survive harsh environments
S1-568 5 kV insulation resistance testers has been designed, specified and tested to meet the stringent requirements of power utilities in the 21st century. In addition to being tough, high performance insulation testers the S1-568 Megger offers the ability to perform accurate insulation resistance measurements in extreme, high noise environments, rapid charging of cable capacitance, and even remote operation for both convenience and safety.

For service companies the S1-568 represents an excellent choice with its flexibility and future proofing capability. Quite simply the Megger S1-Series is designed to work wherever you work.
